Add values to the concentration annotation of a Plate in an In Vitro Analysis from the Signals Configuration

For Administrators only.

Prior to this task:

✔ In Vitro Analysis template must be created.

✔ Plate for an In Vitro Analysis template must be created.

*Required.

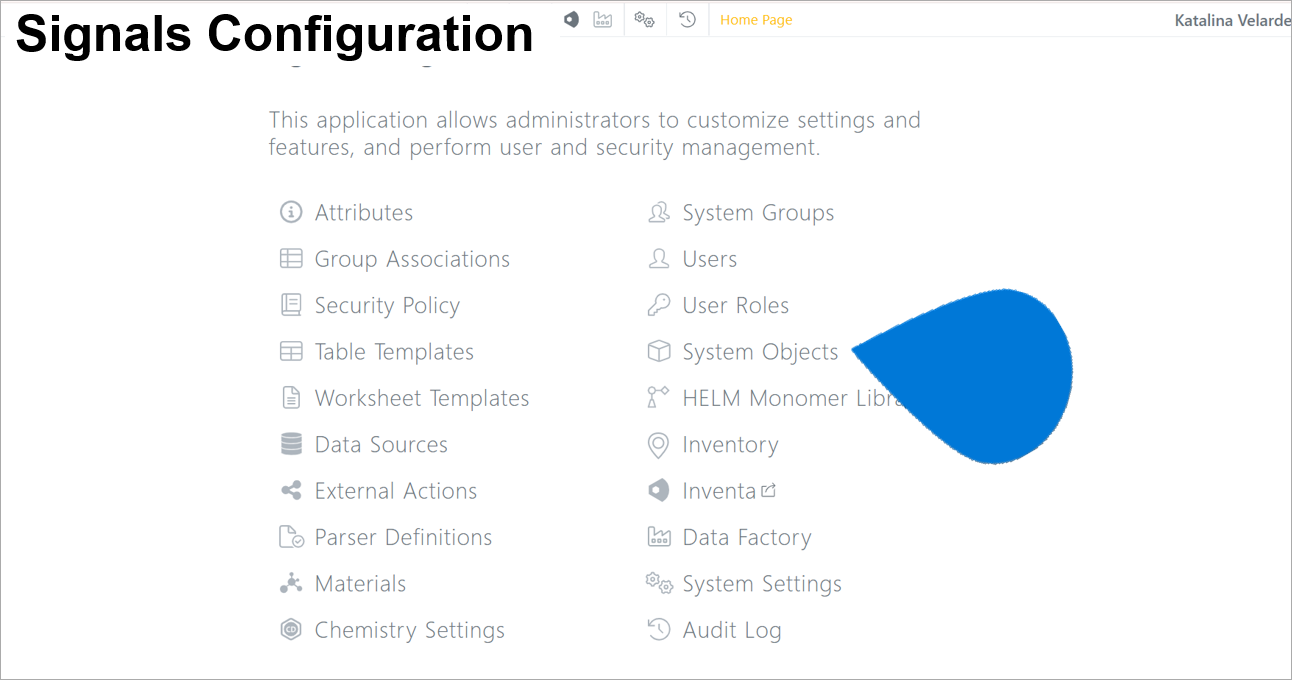

1️⃣ Signals Configuration ➡ select [System Objects]

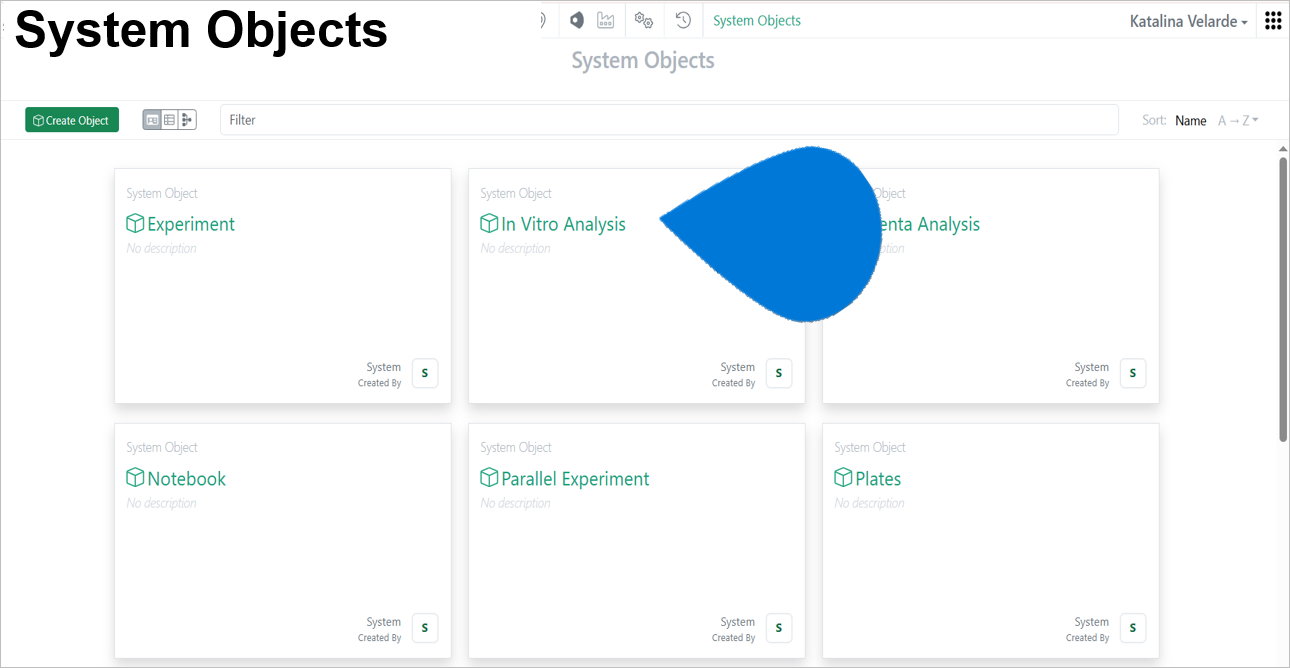

2️⃣ System Objects ➡ select In Vitro Analysis

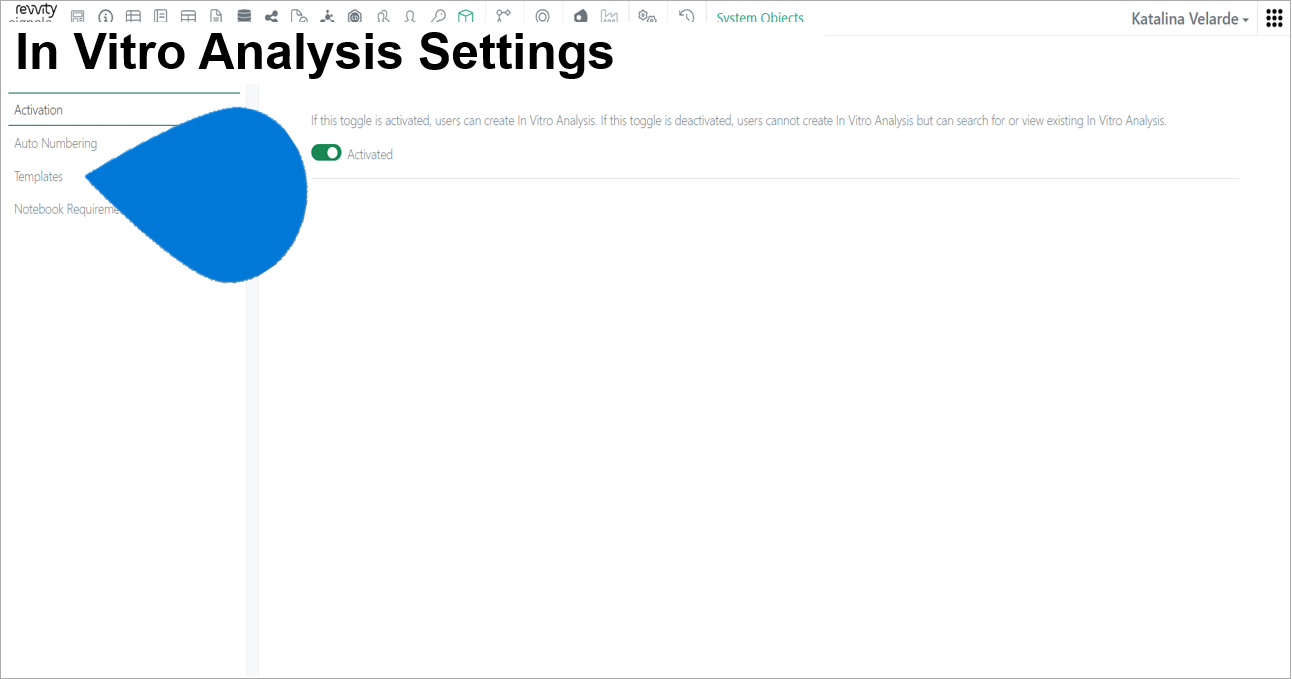

3️⃣ In Vitro Analysis Settings pane ➡ select Templates

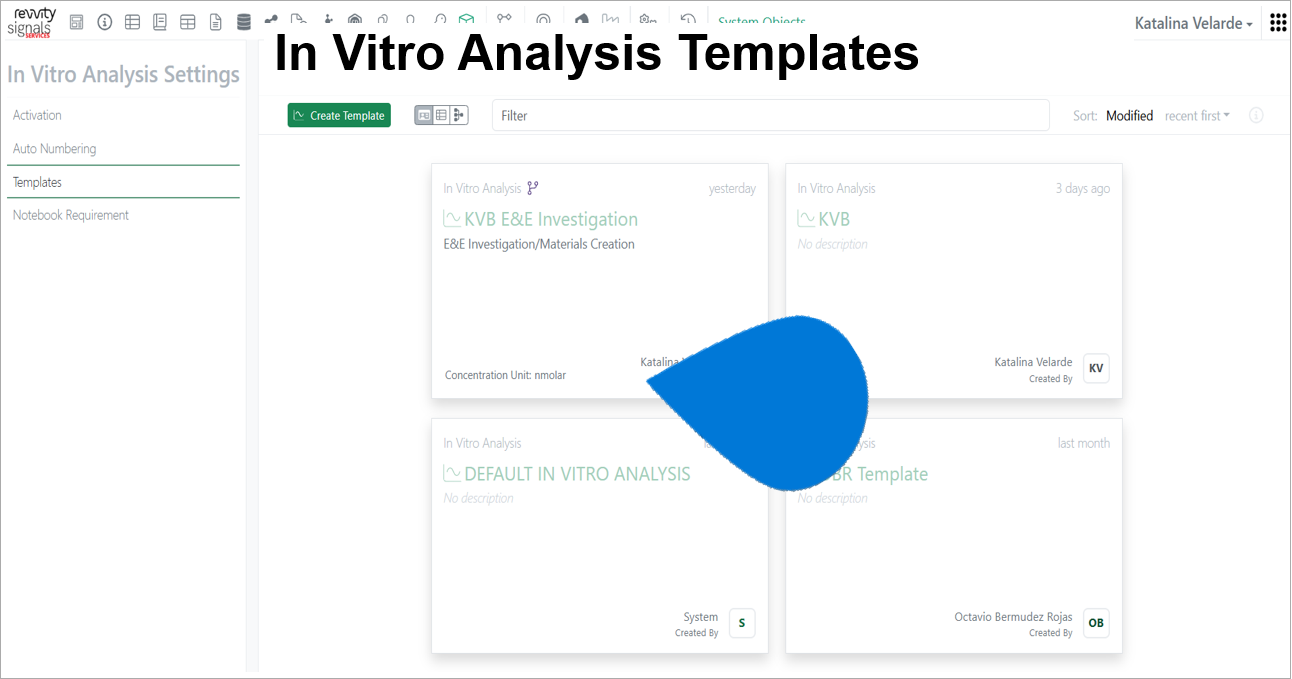

4️⃣ In Vitro Analysis Templates section ➡ select in vitro analysis template

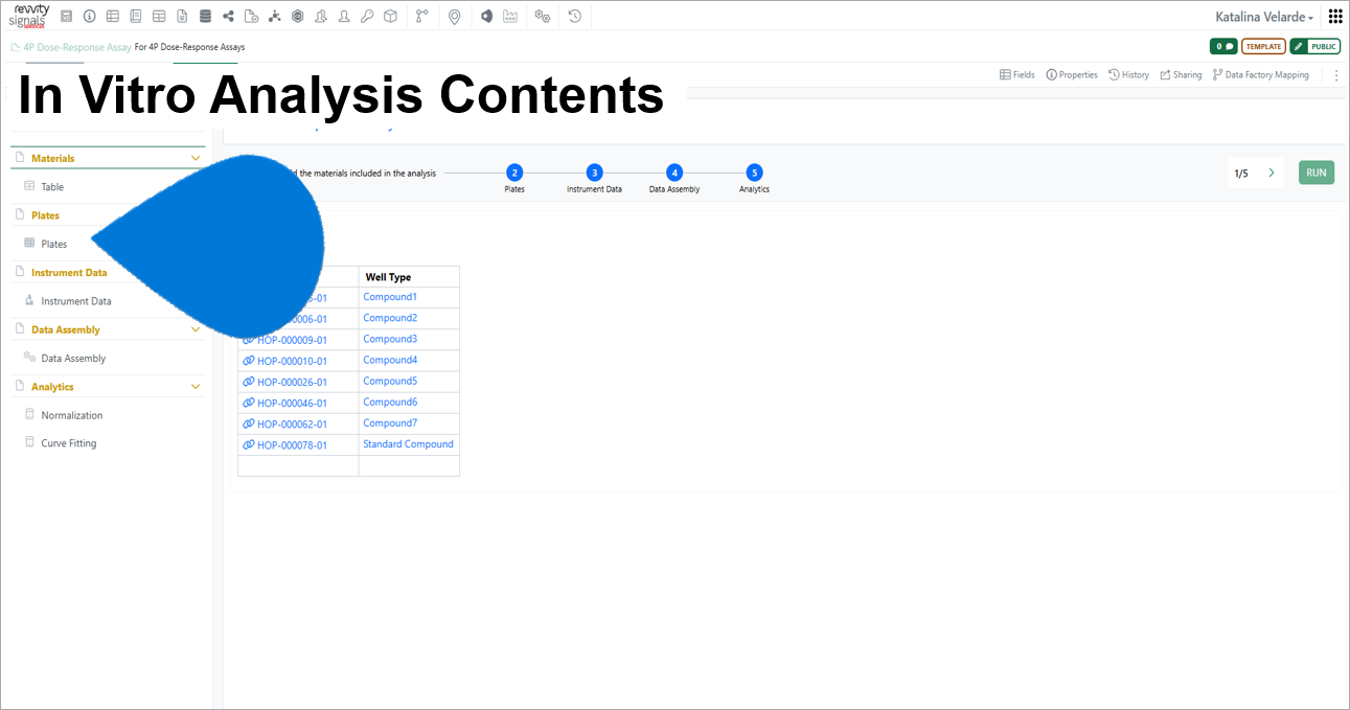

5️⃣ In Vitro Analysis Contents ➡ Plates ➡ select [Plates]

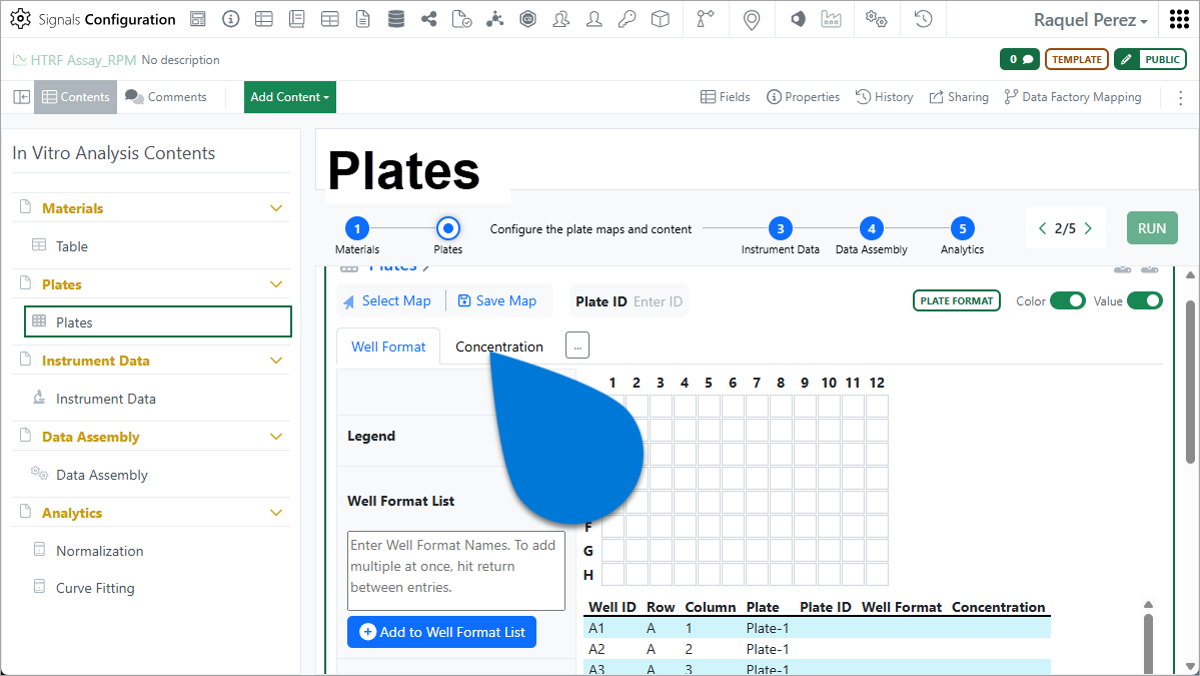

6️⃣ Plates section ➡ select Concentration

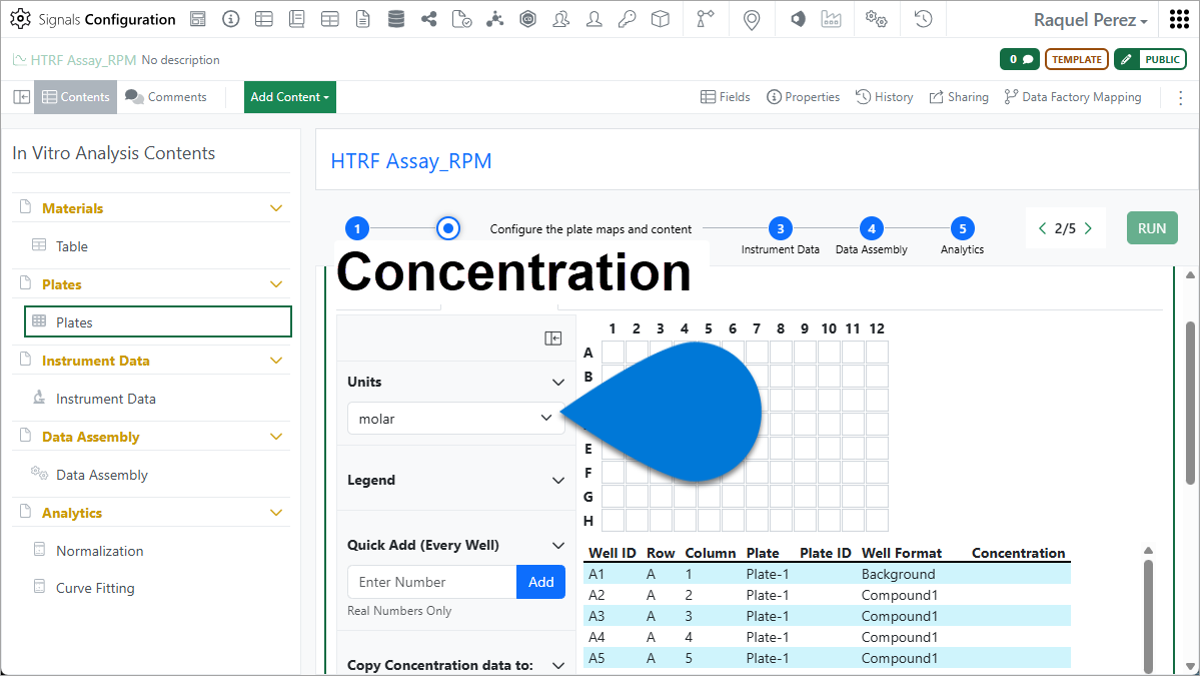

7️⃣ Concentration tab ➡ Units ➡ select  unit

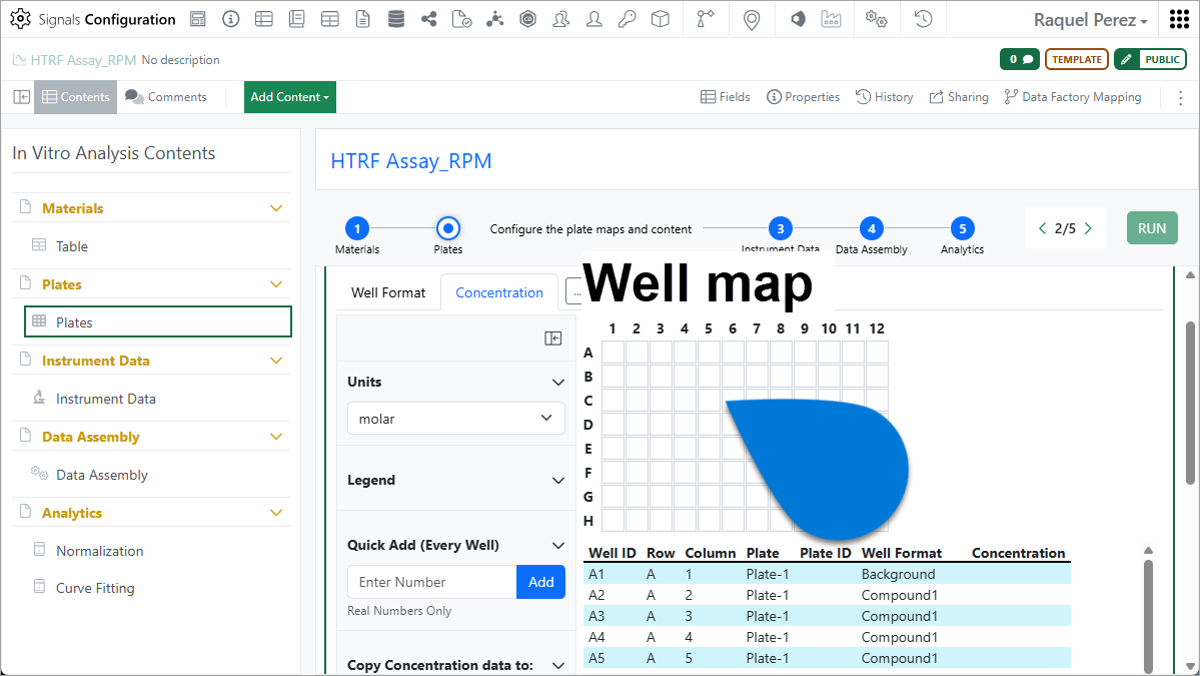

8️⃣ Well map area ➡ select well ➡ enter numerical concentration†

Supporting Knowledge

† Repeat step 8 for the remaining wells as needed.

Note: The Concentration annotation layer allows users to enter numeric values only.
