Define Project Mappings for a Table Template from the Signals Configuration

For Administrators only.

Prior to this task:

✔ Table Template must be created.

✔ Data Factory Mapping must be added.

✔ Measurement Type(s) must be defined.

*Required.

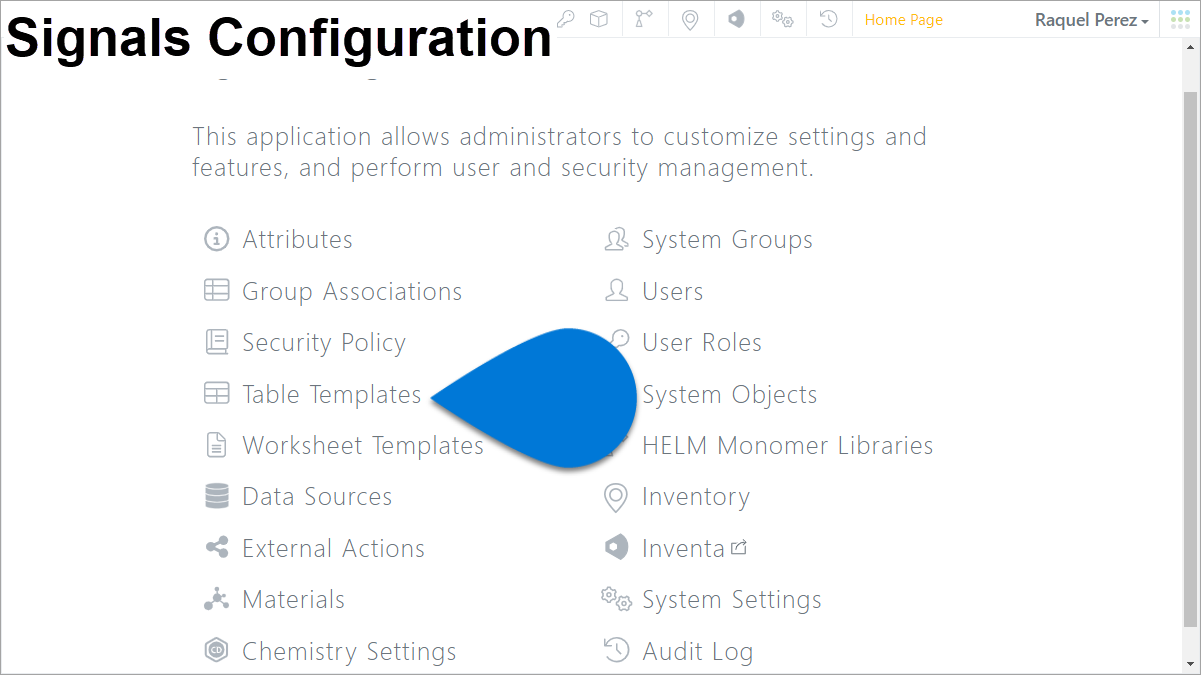

1️⃣ Signals Configuration ➡ select [Table Templates]

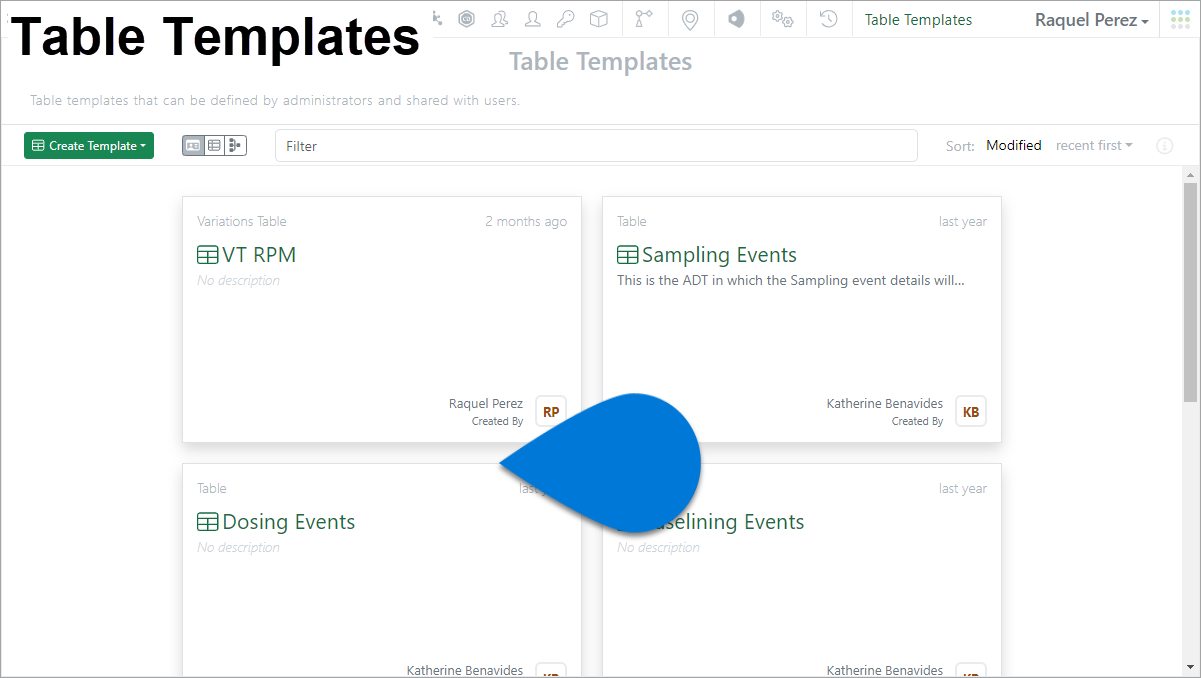

2️⃣ Table Templates ➡ select Table Template

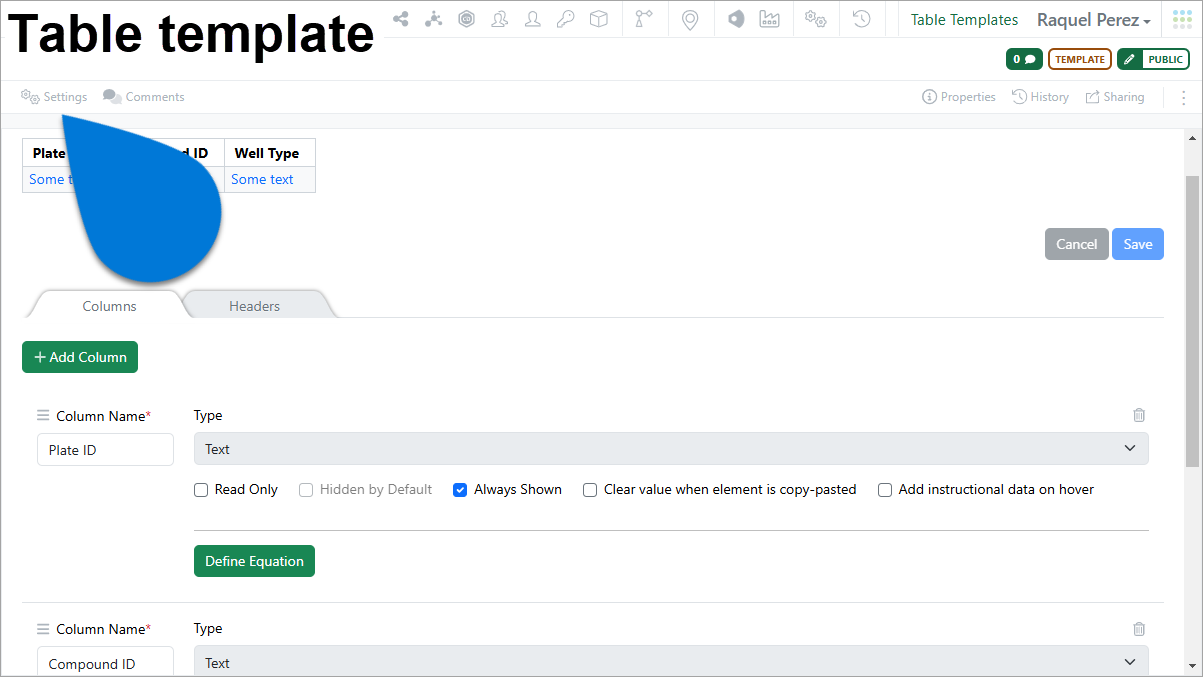

3️⃣ Table Template ➡ select [Settings]

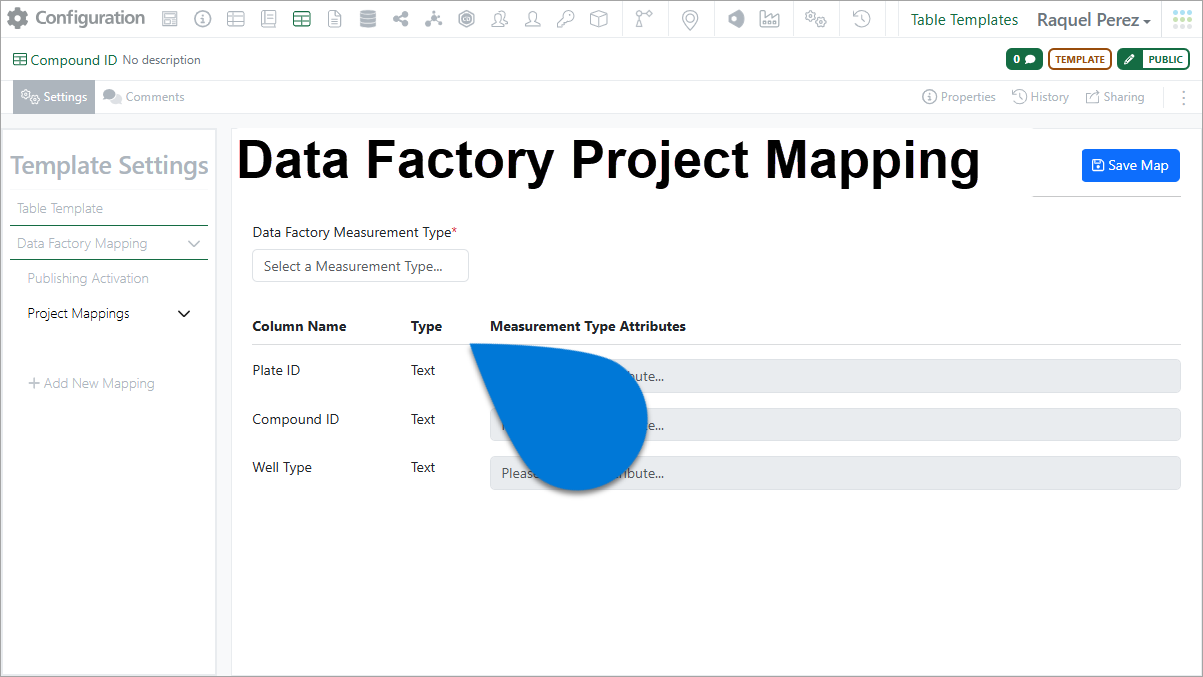

4️⃣ Data Factory Project Mapping section ➡ select  Data Factory Measurement Type* Measurement Type Attributes

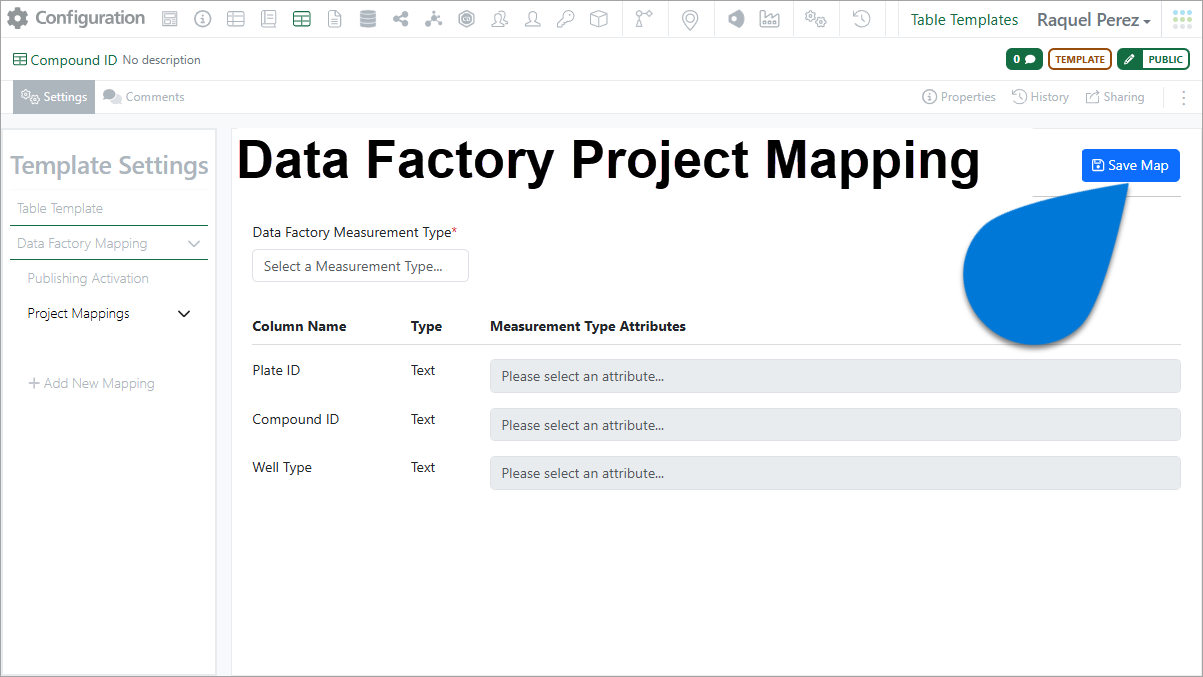

5️⃣ Data Factory Project Mapping section ➡ select [Save Map]

Supporting Knowledge

Note: To copy a map from an existing mapping, ensure that at least one Project Mapping is added to the Table Template. Then, select the [Copy Map From] button and the Measurement Type, and mapping will be populated automatically.
