Edit an image of an Experiment in Signals

Prior to this task:

✔ Experiment must be created.

✔ Image must be added to an experiment.

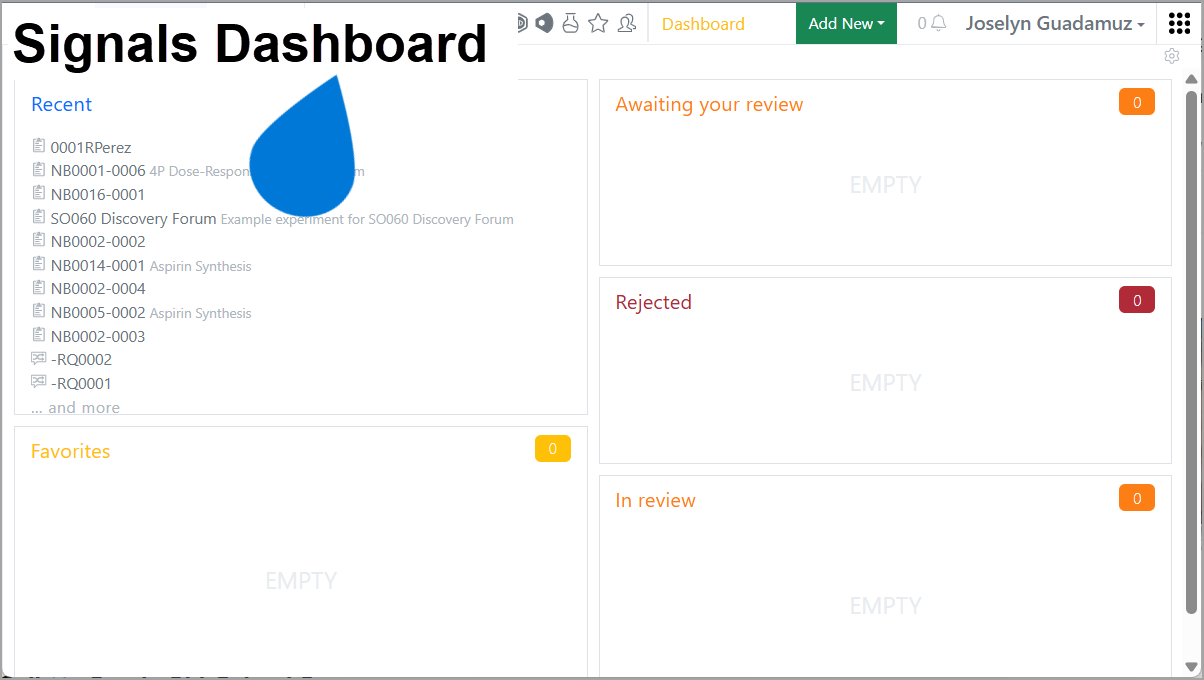

1️⃣ Signals Dashboard ➡ select [Experiments]

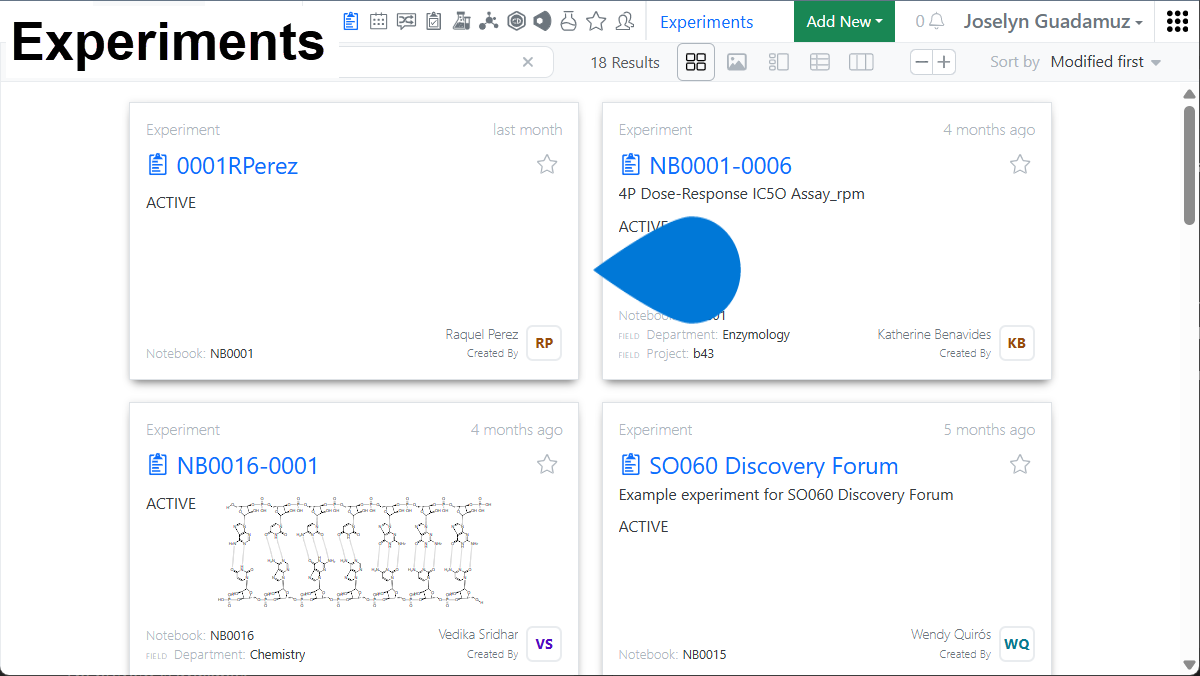

2️⃣ Experiments ➡ select experiment

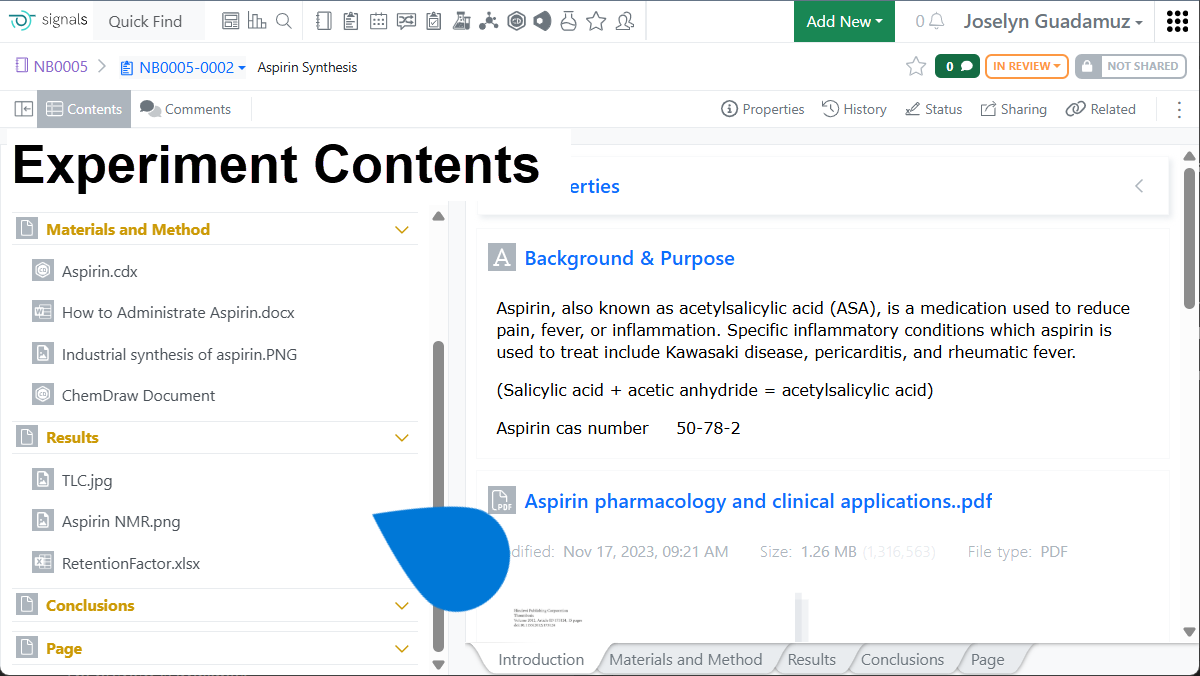

3️⃣ Experiment Contents pane ➡ select [“image name”]

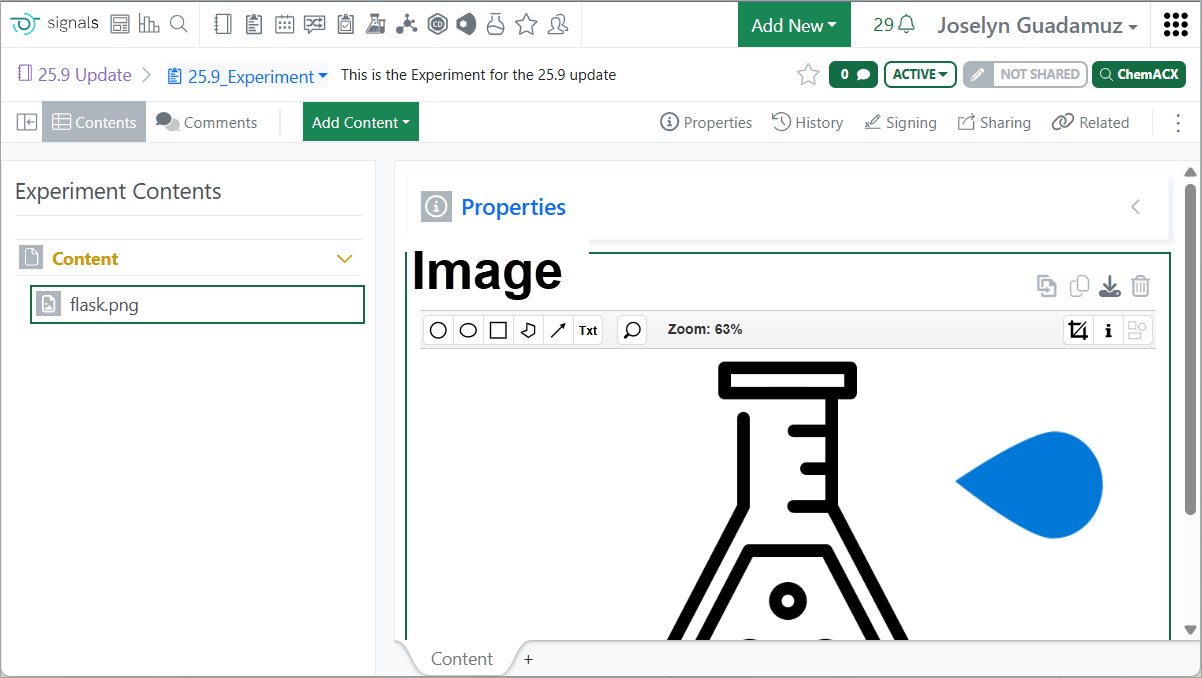

4️⃣ Image section ➡ modify accordingly†

Supporting Knowledge

†Buttons available in the Image toolbar:

• [Add new area]: These buttons allow users to select the tag form (circle, ellipse, rectangle, and polygon).
• [Add new pointer]: This button adds a new pointer to the image; users can customize the arrow type and width.
• [Add new text label]: This button adds a new text label to the image; users can customize the size and font.
• [Zoom]: This button allows users to zoom out, zoom in, zoom to 1:1, zoom to fit view width, and zoom to fit window.
• [Change object color]: This button allows to select a new color for an object in the image.

Optionally, to edit the scale of an image, from the Image section, select the [Edit image preferred scale and crop] button. From the scale options, modify accordingly, then select [Apply new image scale and clip].

Optionally, to observe the information of an object in the mage, from the Image section, select the [Toggle object information display] button. From the Image section, select an object to observe.
