Paste a chemical structure into a Chemical Drawing of an Experiment in Signals

Prior to this task:

✔ Experiment must be created.

✔ Chemical Drawing must be added to an Experiment.

✔ Chemical structure must be copied to the clipboard.

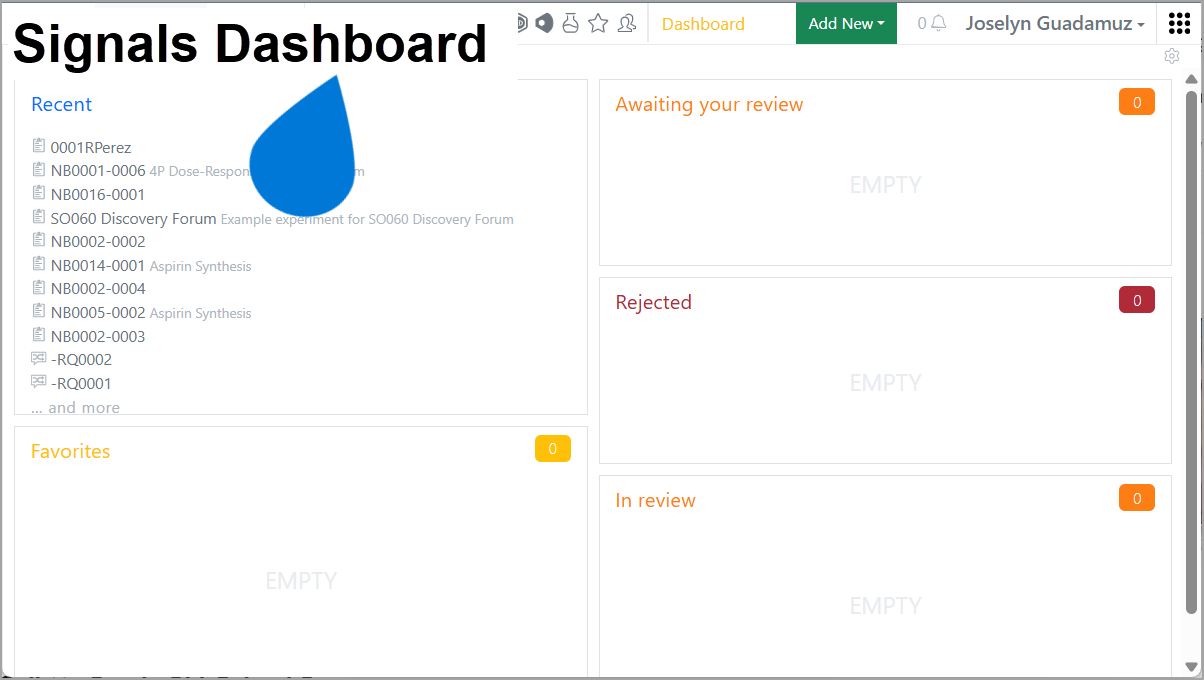

1️⃣ Signals Dashboard ➡ select [Experiments]
2️⃣ Experiments ➡ select experiment
3️⃣ Experiment Contents pane ➡ select ["chemical drawing name"]

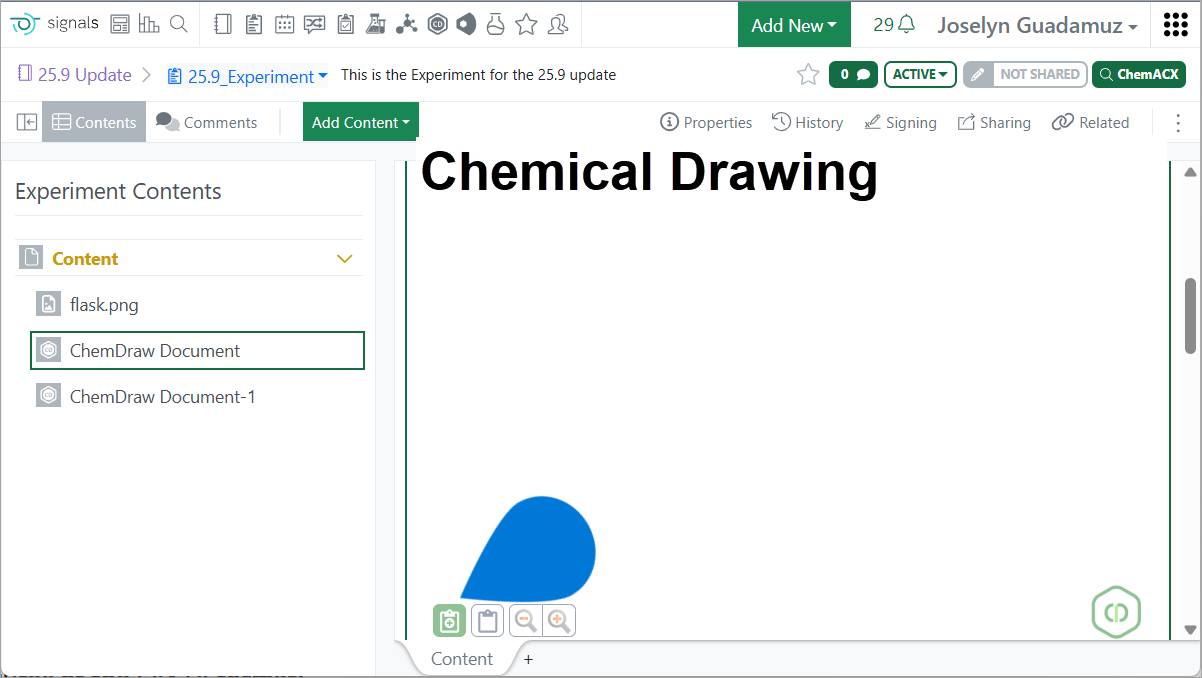

4️⃣ Chemical Drawing canvas ➡ select [Paste]/Ctrl+V to paste chemical structure

Supporting Knowledge

Notes:

• Chemical structures can be copied from “Open” or “Closed” Experiments.
• The format of chemical structures to be copied can be: CDXML, HELM, SMILES, MOL V3000, MOL V2000, InChl, InCHl Key, SLN.
• Chemical structures can be pasted into Experiment reactions, ChemDraw desktop or other chemical processors.
