Prior to this task:
✔ Experiment must be created.
✔ Table must be added to an experiment.
✔ A .csv file with internal reference value(s) must be available.
| 1️⃣ Signals Dashboard ➡ select |
|

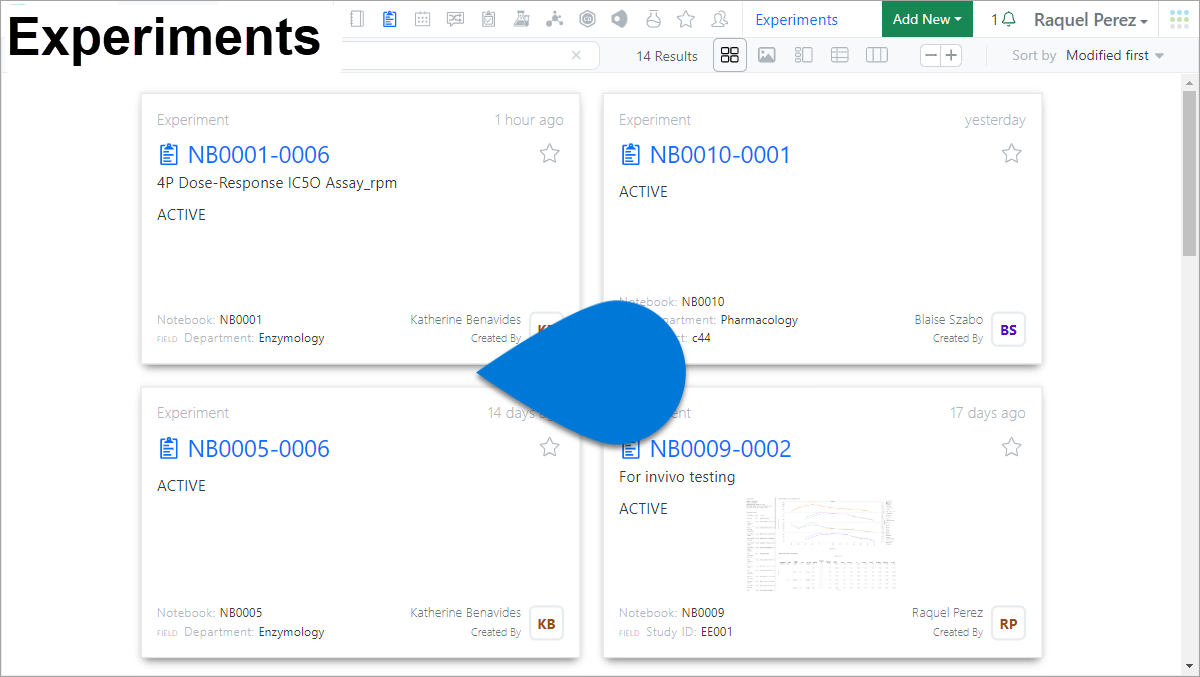

| 2️⃣ Experiments ➡ select experiment with table template | |
| 3️⃣ Experiment Contents pane ➡ select |
|
|

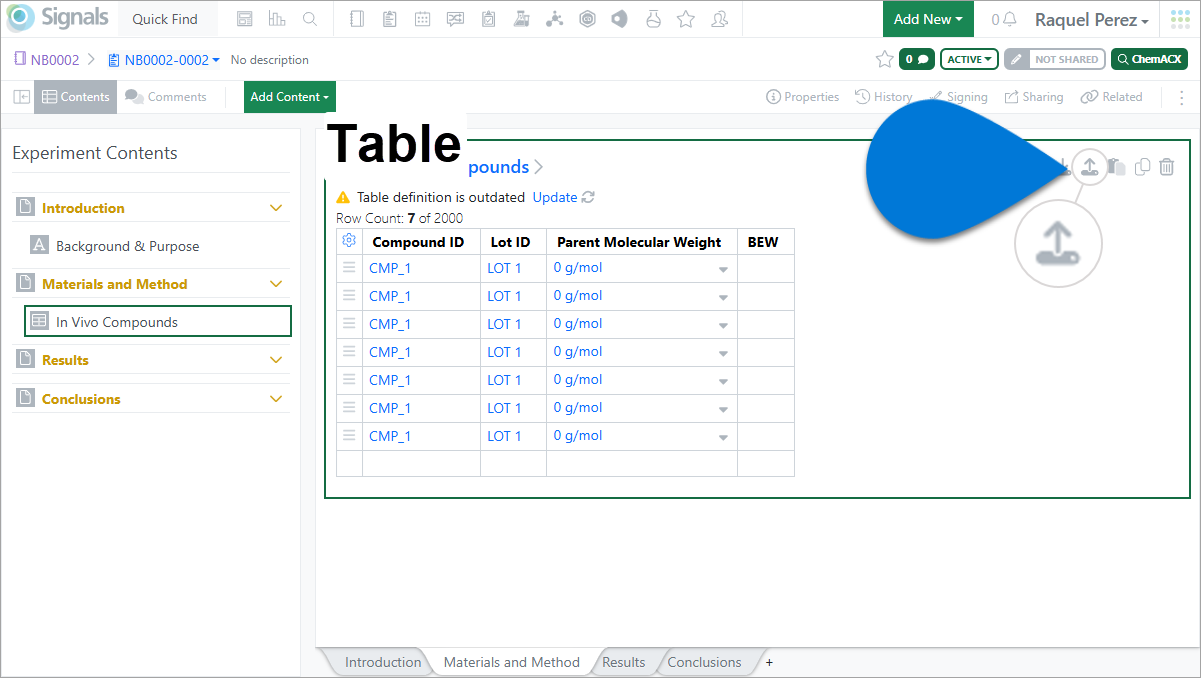

4️⃣ Table section ➡ select |
|
|
5️⃣ Open window ➡ browse and select .csv file with internal reference value(s) |
|
|
6️⃣ Open window ➡ select |
|
Supporting Knowledge
Notes:
- The .csv file must contain columns that match with the columns of the Table.
- The acceptable internal reference values are IDs that are used in Signals Notebook (Material ID, Sample ID, Experiment ID, etc.).
- Upon uploading the .csv file, the valid IDs are added, and the internal reference field displays the referenced items as links with a
[Preview] icon.
- If the user enters an invalid ID in the .csv file that is being exported into the Table, the
[Invalid ID] warning along with the
[Remove this row] icons will appear.
-
If any of the internal reference values are not unique, i.e., they map to more than one entity in Signals Notebook, then the .csv file import into the Table will fail.
-
If the internal reference items are valid but do not match with the predefined query for the internal reference field, then the .csv file import into the Table will fail.
-
When the import of the .csv file into the Table fails, a message stating the reason for the failure will be displayed.
-
Materials containing up to 100 unique reference items can be mapped using the Import from .csv option in one multi-field internal reference.
