Signals Notebook: How to add Inventory columns to an Admin Defined table

Signals Notebook allows you to add Inventory columns to your Admin Defined Tables (ADT) linked to your containers. In this article, you will find a step-by-step guide on how to perform this configuration.

Note: Since this procedure requires various configuration actions, it must be performed by a system administrator.

1. Access Signals Configuration.

2. Go to the configuration menu.

3. Select the option "Data sources".

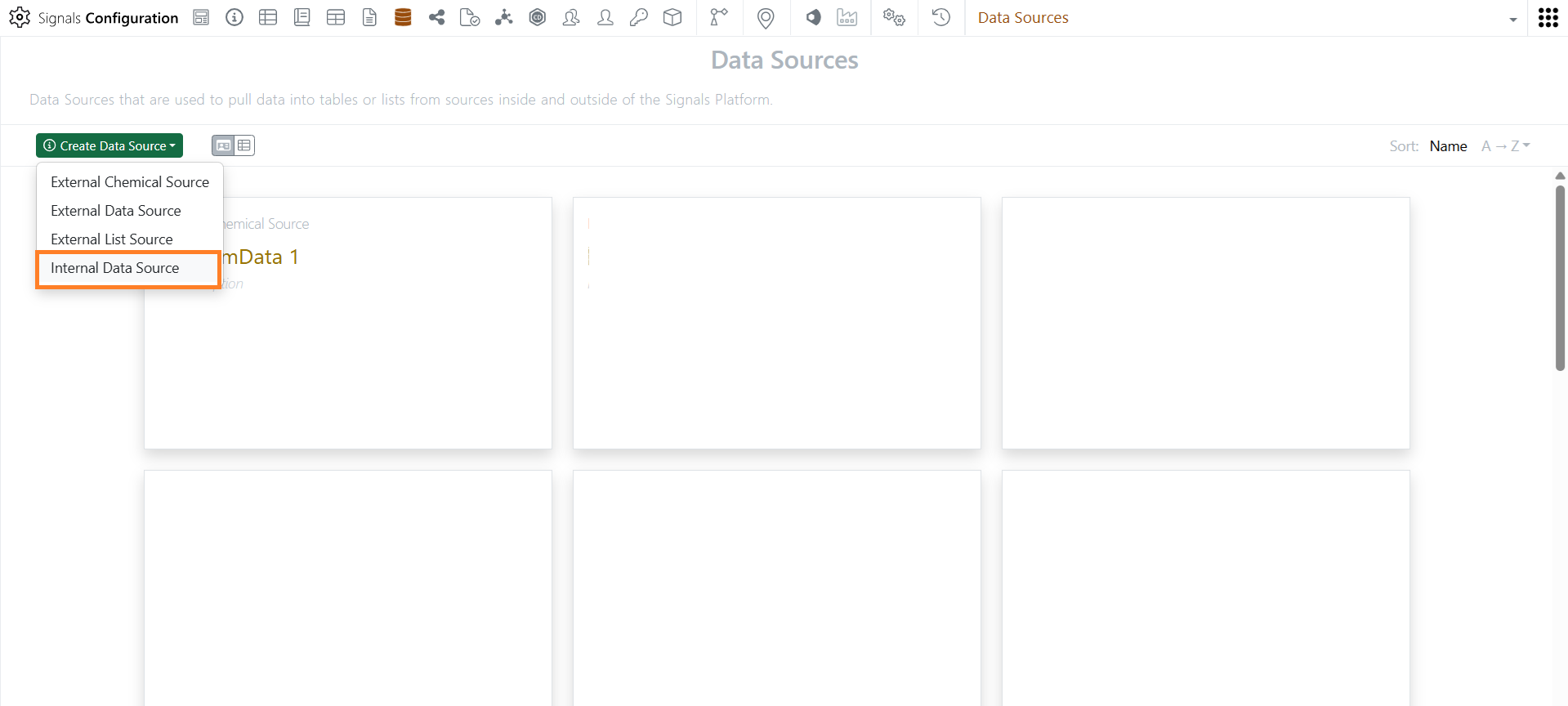

4. Click on "Create Data Source" and select the option "Internal data source".

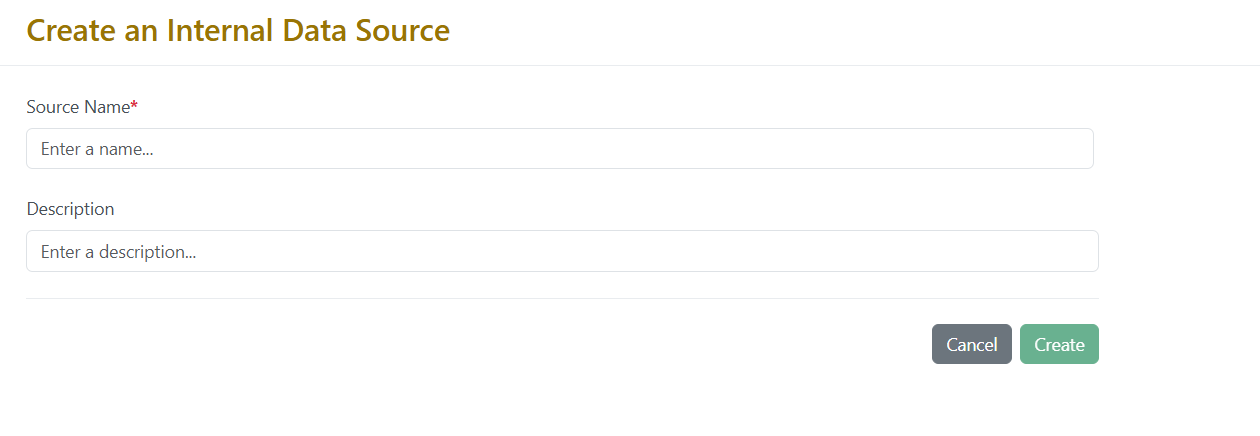

5. Add a name and a description (optional) and click on create.

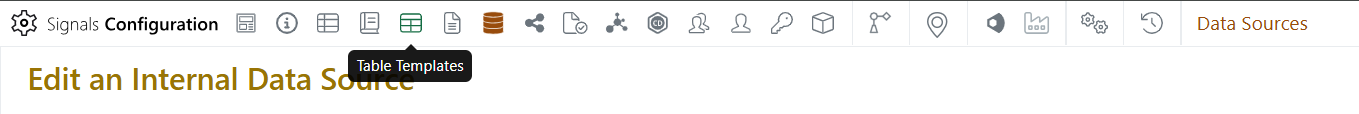

6. Once the Internal Data Source has been created, click on the “Table templates” option.

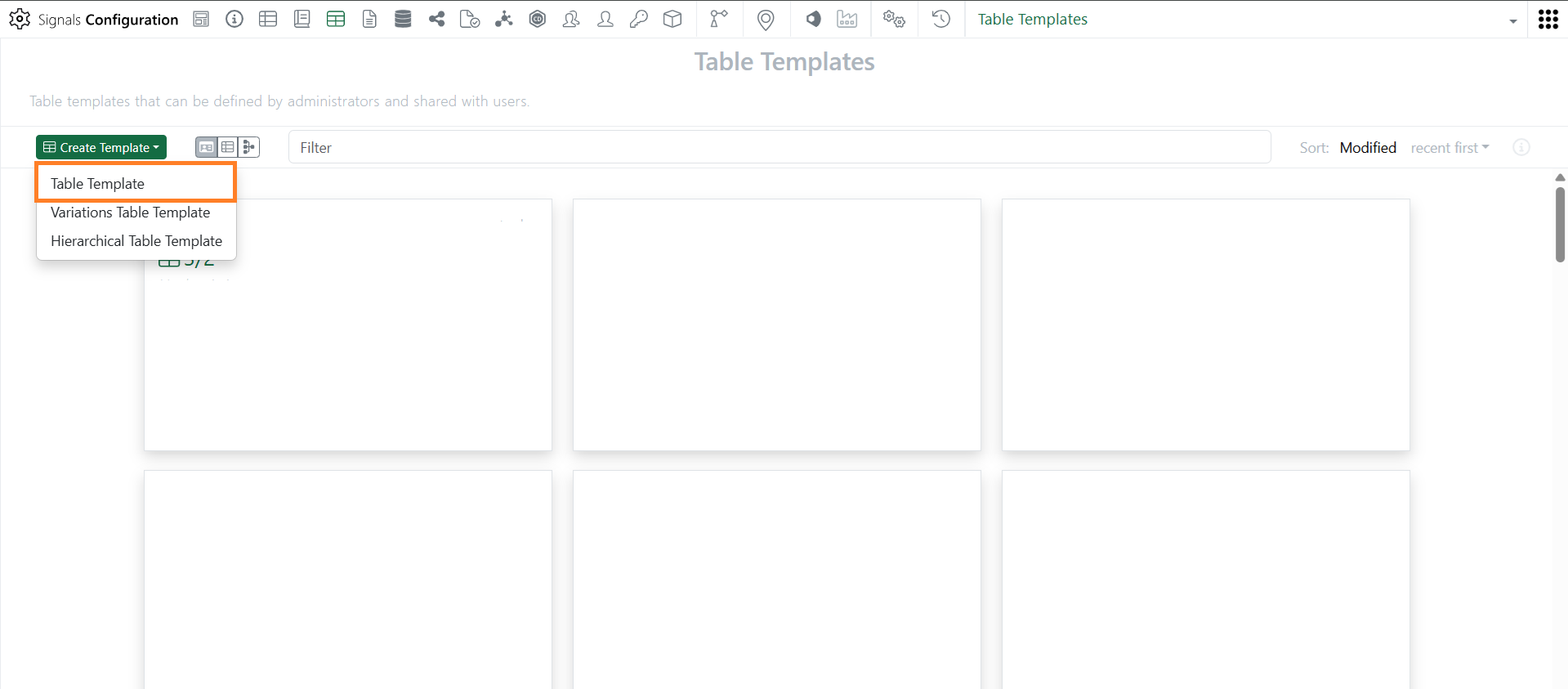

7. Click on "Create template" and select the option "Table template".

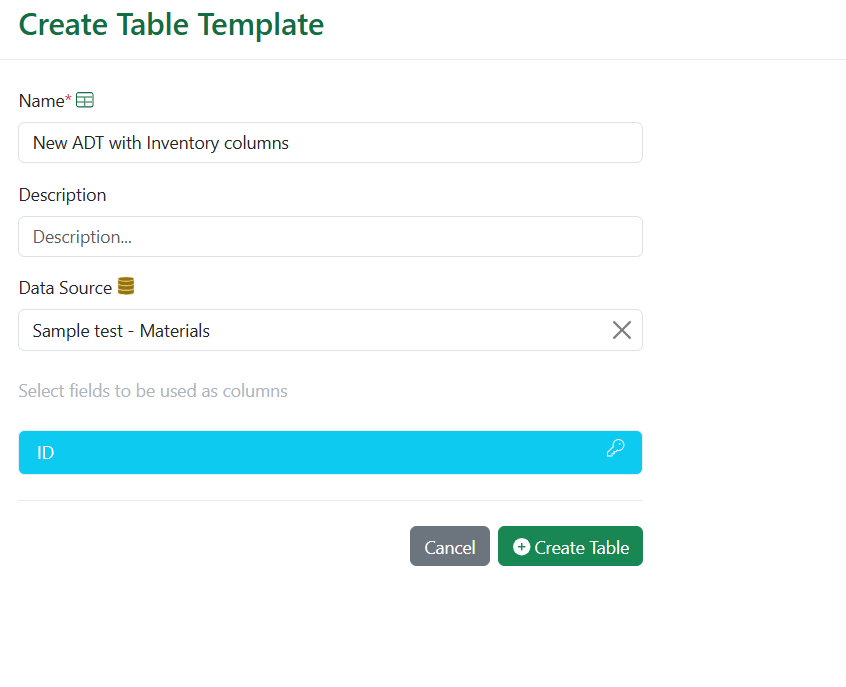

8. Add the name for your new ADT and as data source select the internal data source created in step 6. The ID field will be selected by default. Click on "Create table".

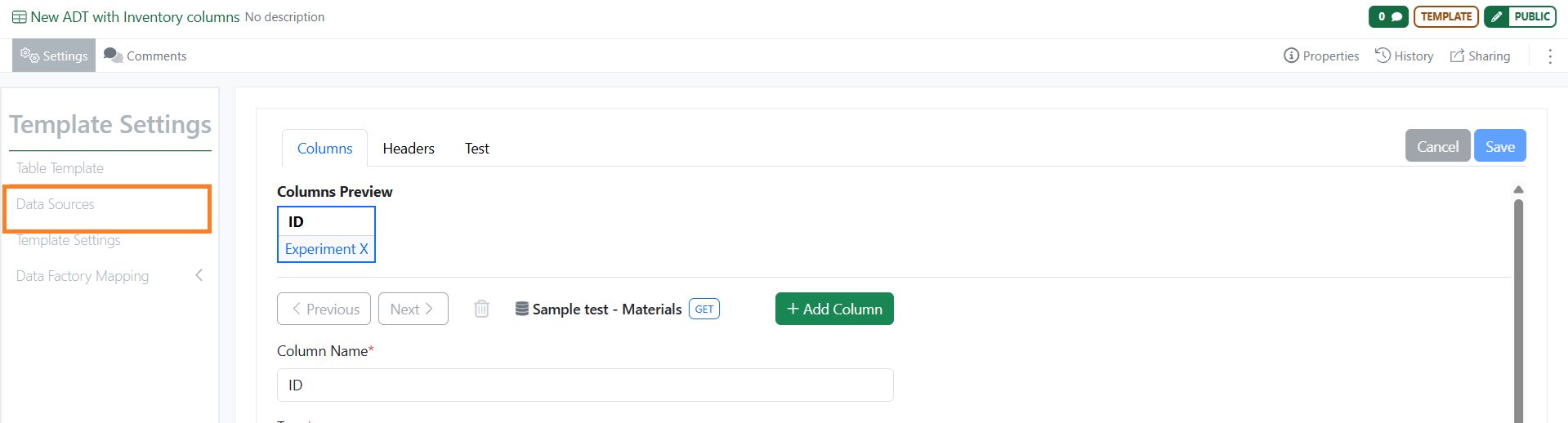

9. In the left side menu, click on the “Data sources” option.

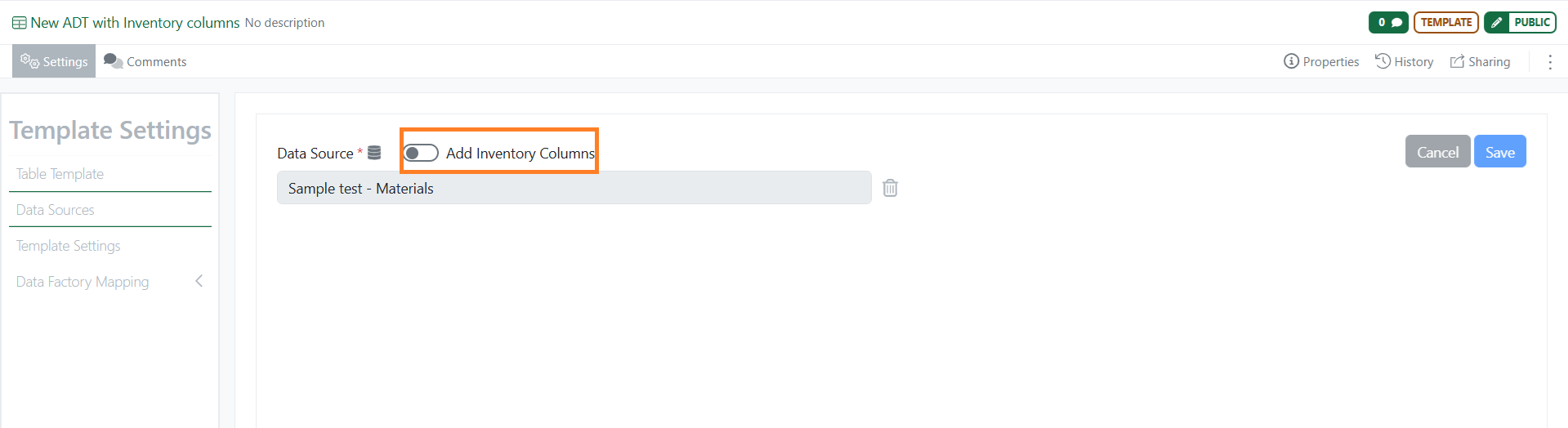

10. You will see the option “Add Inventory columns” on the top of your internal data source; activate this toggle button.



11. Once you have performed this action, Inventory columns: "Inventory Decrement", "Barcode", "Container ID" will be added automatically to the table.

12. Click on "Save" and your ADT will be ready to use.
