Keywords: Install, Windows, PC, download
If you have a Signals ChemDraw Subscription, please refer to the "Downloading and Installing ChemDraw Desktop Suite through the Signals Platform" section below
Details:
1. On the Download Center, click the Download Now option corresponding to your order number (https://revvitysignals.flexnetoperations.com)
Note: If you do not have access (or do not know your order number), contact your local tech admin. For Academic Subscriptions, please follow the instructions on the Quick Start Guide
2. Once downloaded, right-click on the installation EXE file (i.e. ChemDraw_Suite_23.0.1.exe or cos22.2.0.exe)
3. Leave the default extraction path and click OK. Specify your own path if you wish to keep a copy of the extracted installation files.
4. If prompted for it, complete the activation process.
5. Once the activation is completed the installation wizard will start and will prompt to you remove any previous versions of ChemDraw found on the computer (if any). Click YES to remove the previous version(s) or click NO if you wish to keep the previous version.
6. Click Next on the following window
7. Read the license agreement document. Once you scroll to the end of the document, select "I accept the terms..." and click Next
8. In the following screen you can specify the individual features that you would like to install. We recommend leaving the default values and then clicking on Next
Note: If you wish to install only some of the components, you may choose Custom. Once you click “Install” on Step 11, the second part of the installation wizard will be launched and you will need to select “Custom Install” again to mark off the components that you don’t want.
9. ChemDraw installs a 32-bit and a 64-bit version. The 32-bit version is required if you will use ChemFinder. You can uncheck this option if it is not required.
You can also decide not to install ChemDraw Collections or ChemScript.
- ChemDraw Prime licenses do not include ChemScript and ChemDraw Collections
- ChemDraw Professional does not include ChemDraw Collections
- Signals ChemDraw includes all the options.
If you are not sure if you will need to use these products or if you have a license for it, please leave the default options seen below and click Next. Some of the options may not be available to you based on your license.
10. If you chose to install ChemScript or ChemFinder, please select both options below to install Python and Python Extensions. Then click Next.
11. The final screen will show the options you have selected to install. If you need to make changes, click the back button. If you are OK with the options, click Install
12. Once the installation is completed, click Finish.

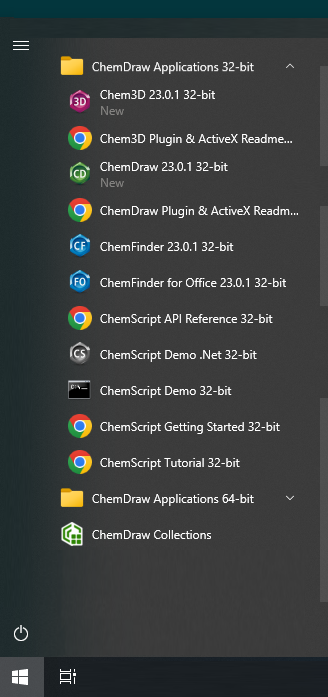

13. The ChemDraw icons will appear on your desktop with the corresponding version number and the 32-bit or 64-bit indication. For all the other applications included, you can click the Start Button and locate the ChemOffice 32-bit and ChemOffice 64-bit folders:
Downloading and Installing ChemDraw Desktop Suite through the Signals Platform
Details:

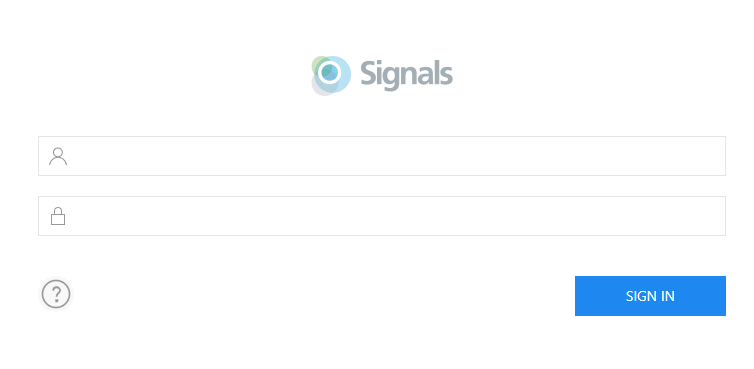

1. Log into the Signals Notebook URL that your license administrator has provided for you

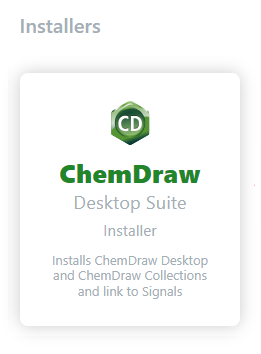

2. On the Signals homepage, scroll down to the Installers section and select "ChemDraw Desktop Suite"
3. Follow the four steps from the window pop-up to download, install and activate ChemDraw Desktop Suite
