Import an import file format into SciStream Manage Formats of the Data Import app

Raquel Perez

Prior to this task:

✔ Spotfire for Signals (item) must be opened.

✔ Data Import app must be opened.

✔ An import file format must be available locally.

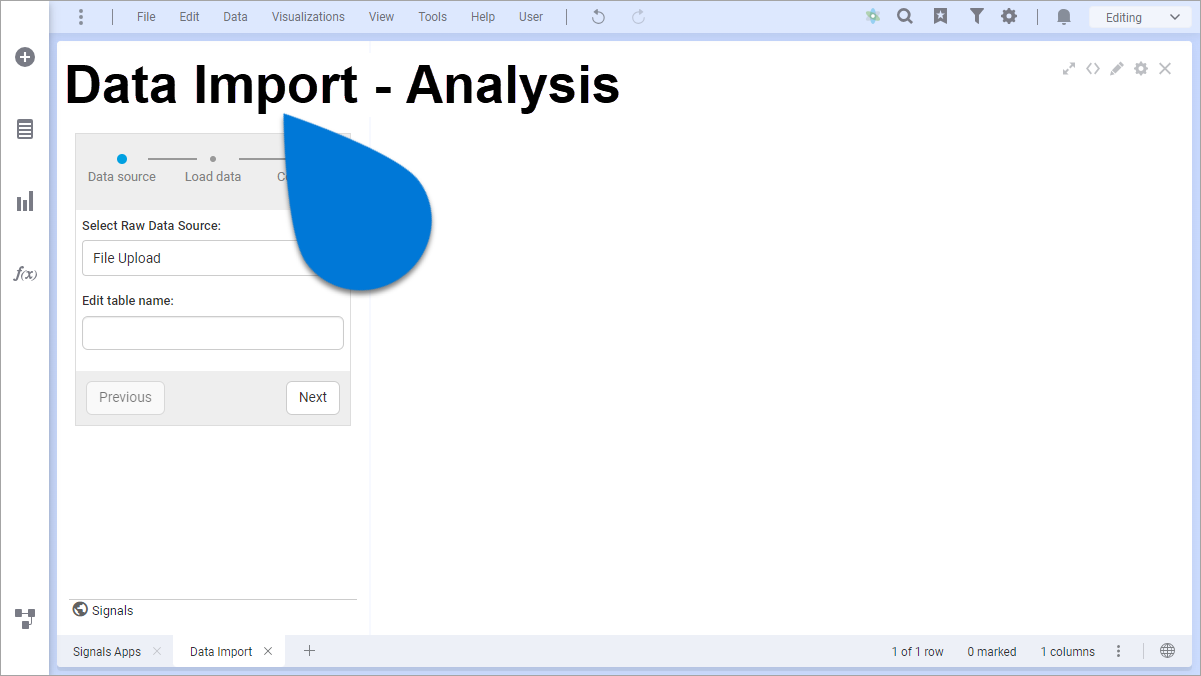

1️⃣ Data Import – Analysis tab ➡ select [Configuration]

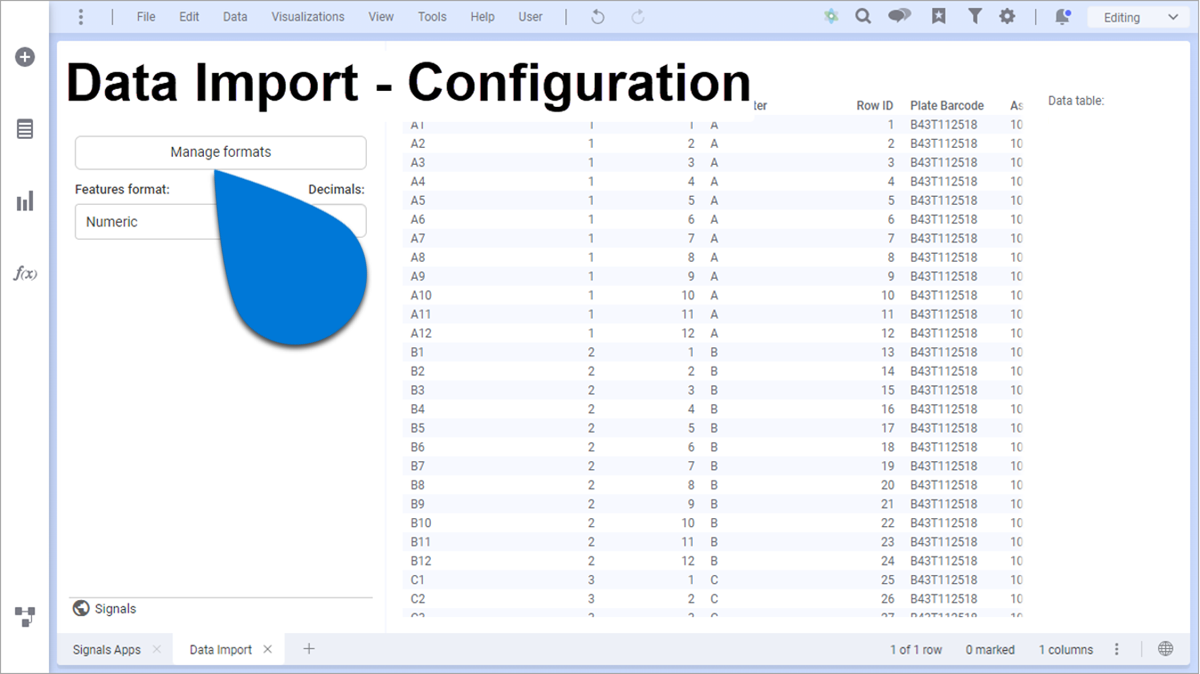

2️⃣ Data Import – Configuration tab ➡ select [Manage formats]

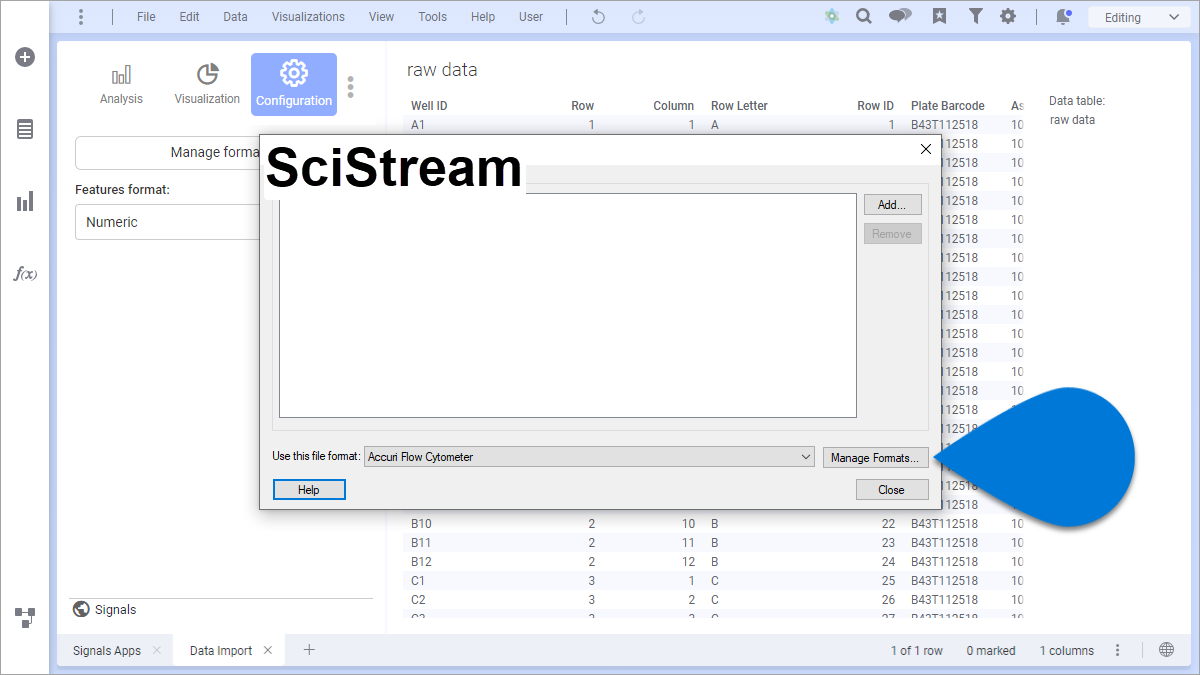

3️⃣ SciStream window ➡ select [Manage Formats…]

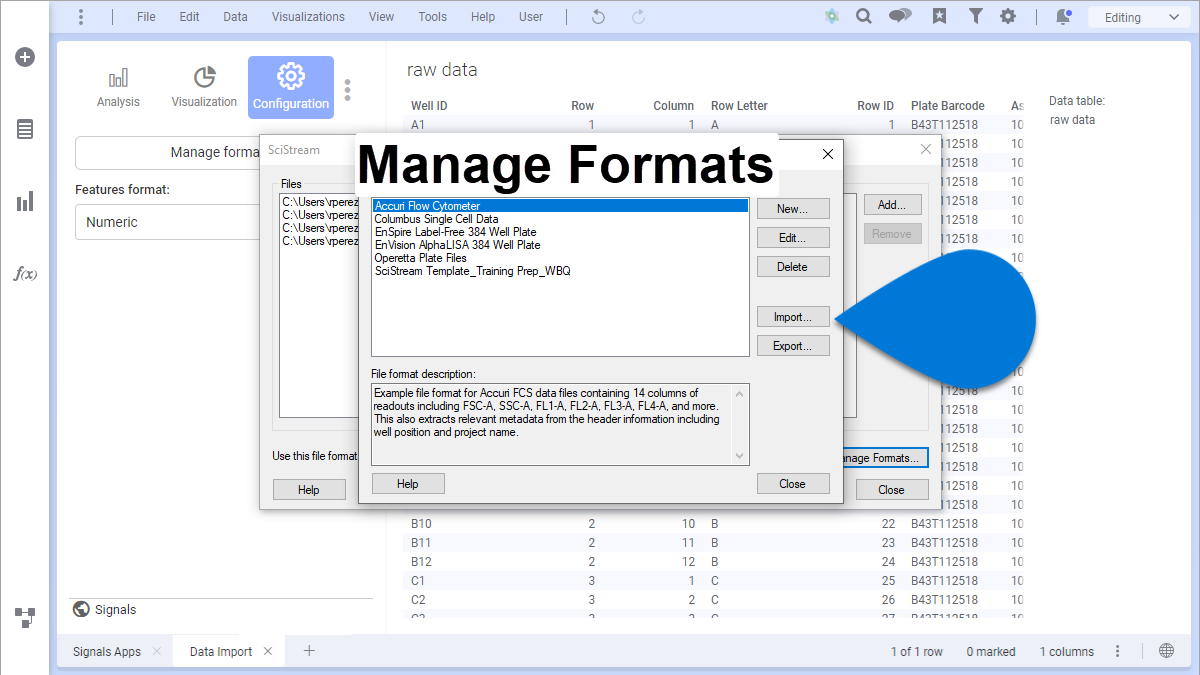

4️⃣ Manage Formats window ➡ select [Import…]

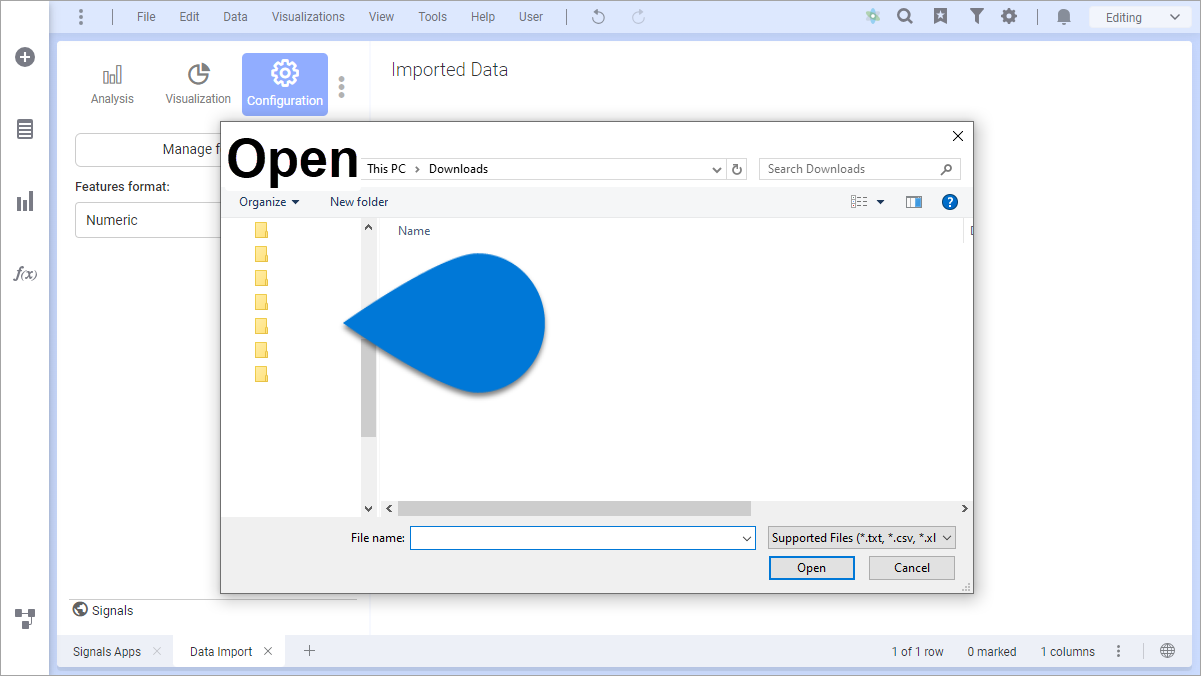

5️⃣ Open window ➡ browse and select .json file

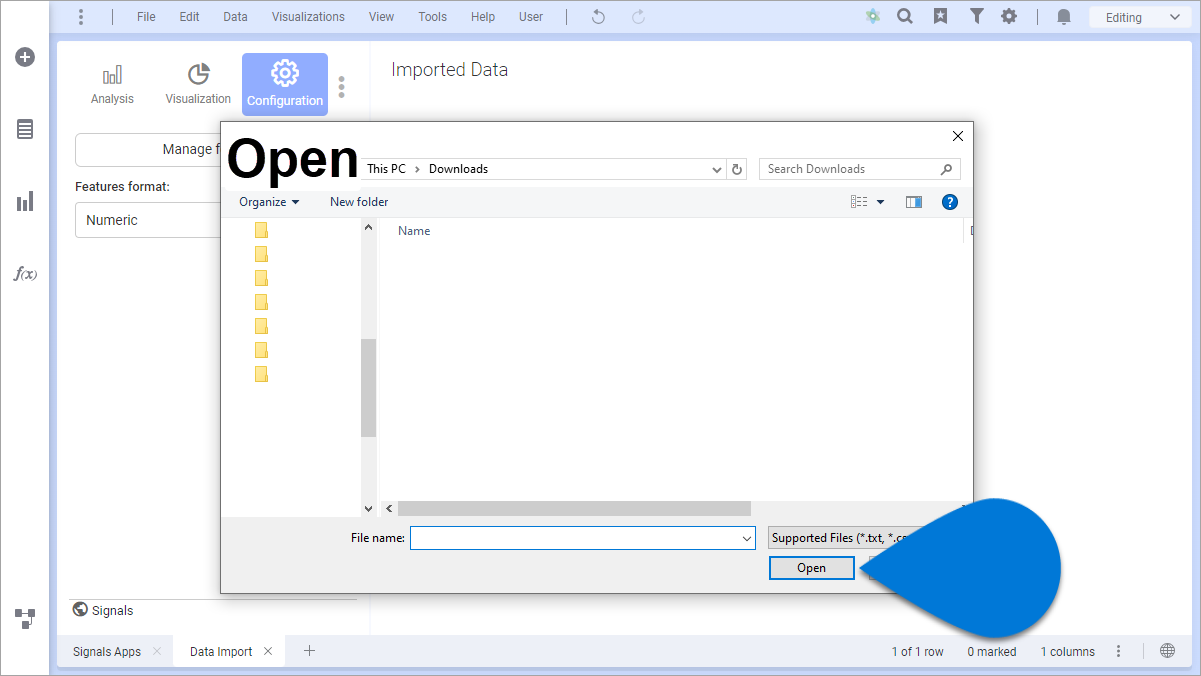

6️⃣ Open window ➡ select [Open]

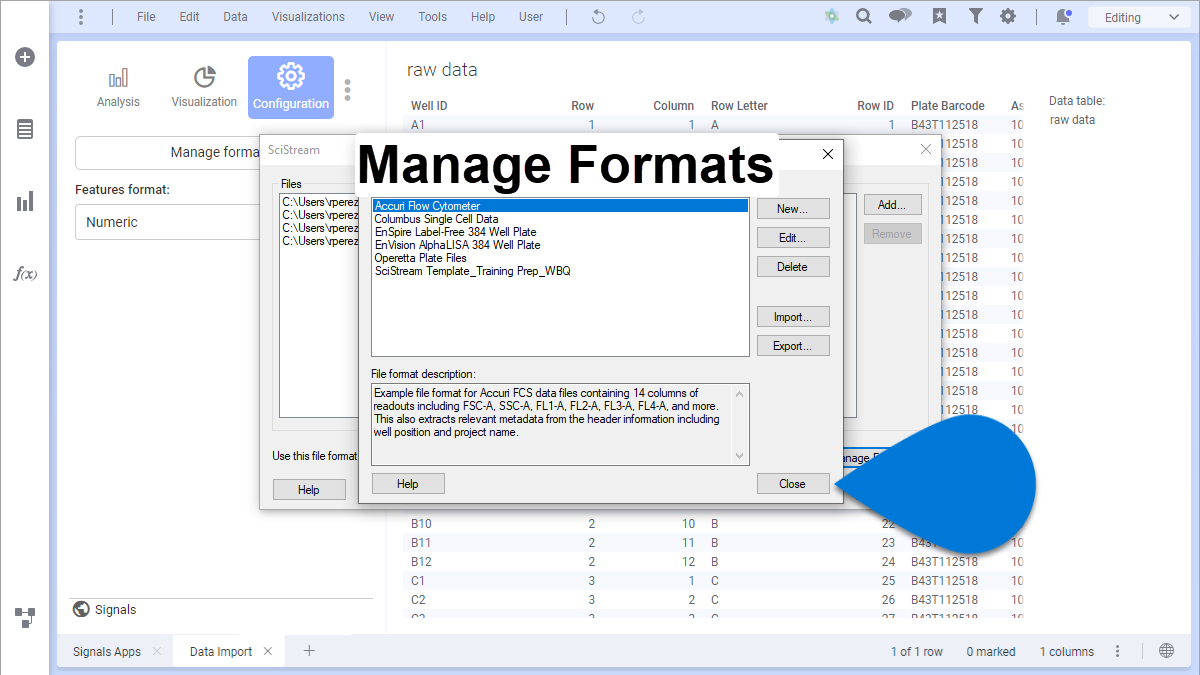

7️⃣ Manage Formats window ➡ select [Close] (Take the same action for the SciStream window)
