Add a column(s) to the Reactants table from the Signals Configuration

For Administrators only.

*Required.

1️⃣ Signals Configuration ➡ select [Chemistry Settings]

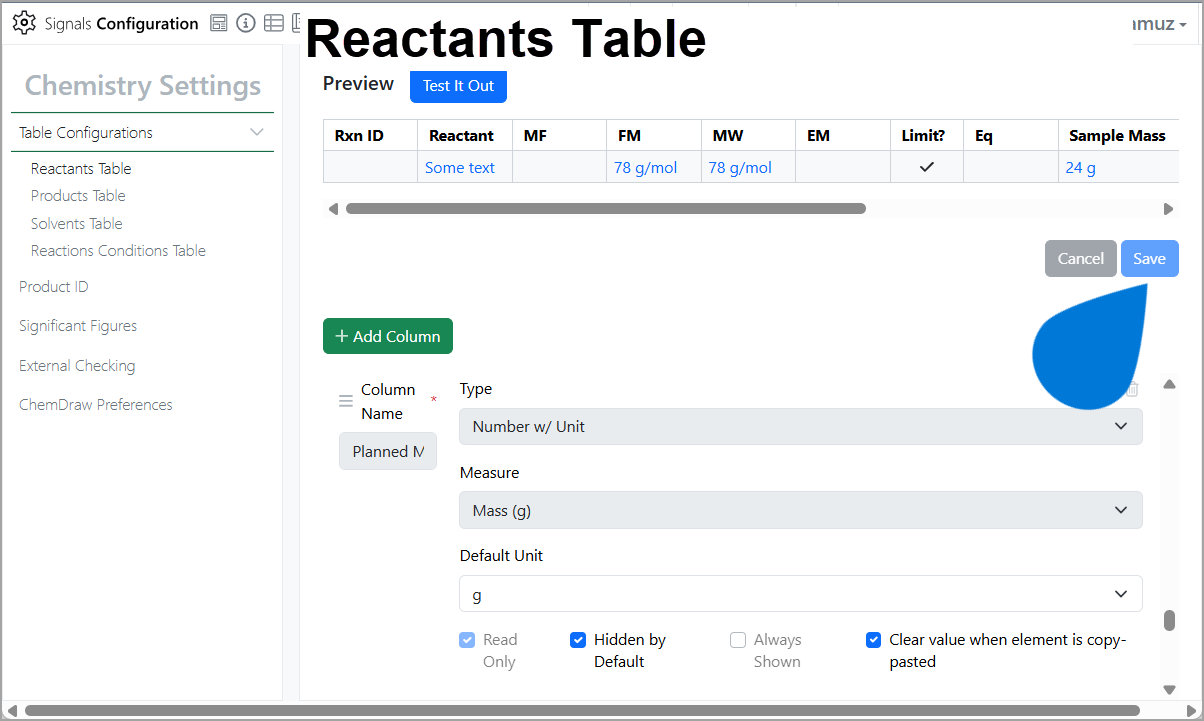

2️⃣ Chemistry Settings pane ➡ select Table Configurations ➡ select Reactants Table
3️⃣ Reactants Table section ➡ select [Add Column]
4️⃣ Reactants Table section ➡ type/select Column Name* Type Read Only Hidden by Default Always Shown Clear value when element is copy-pasted Update Sample
5️⃣ Reactants Table section ➡ select [Save]

Supporting Knowledge

Notes:

• If no Autotext List is defined by the administrator prior to creating a new column field of type "Auto Text list," the Save button remains disabled and the administrator will not be able to save the column field.
• The end user may need to refresh the page to see the impact of any changes made by the administrator.
