Rename a column(s) of the Solvents table from the Signals Configuration

For Administrators only.

Prior to this task:

✔ Column must be added to the Solvents table.

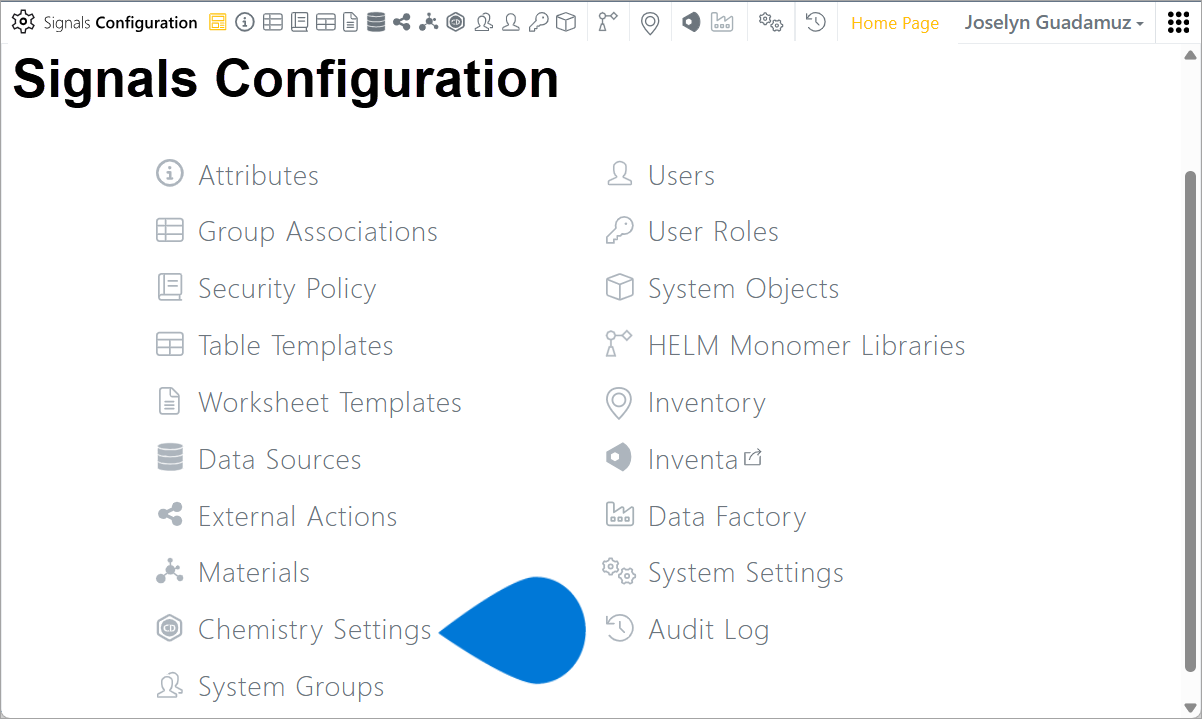

1️⃣ Signals Configuration ➡ select [Chemistry Settings]

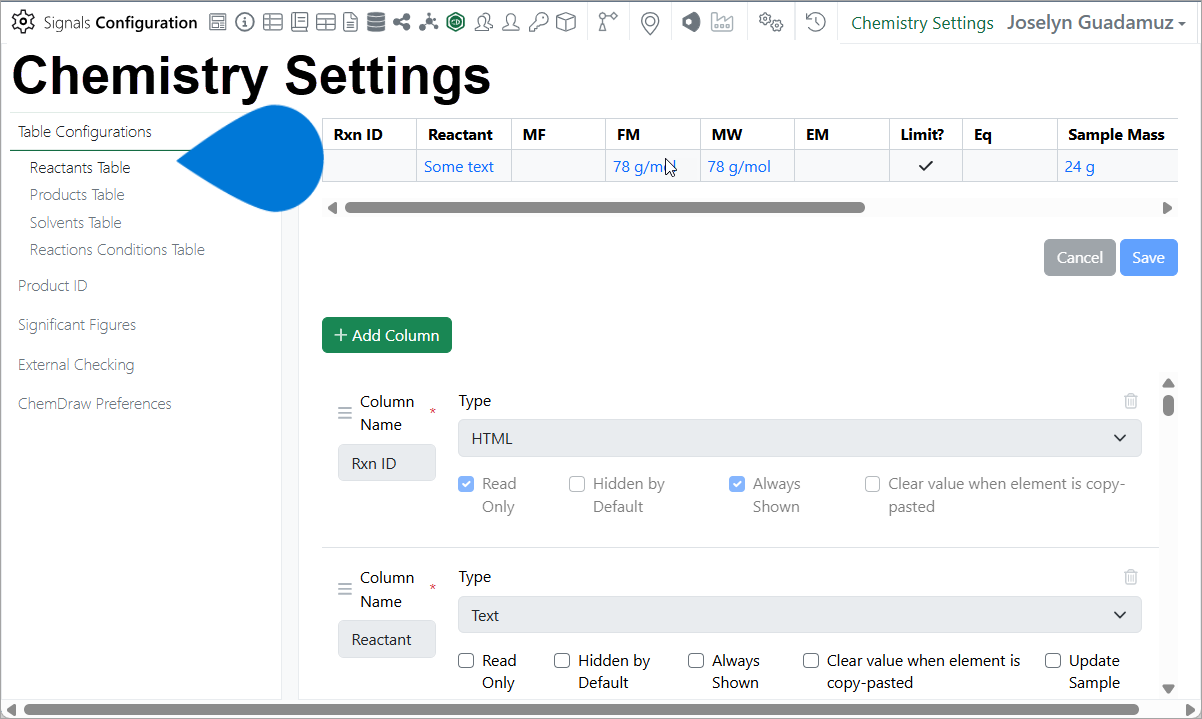

2️⃣ Chemistry Settings pane ➡ select Table Configurations ➡ select Solvents Table
3️⃣ Solvents Table section ➡ Column Name ➡ select “column name” ➡ type new name

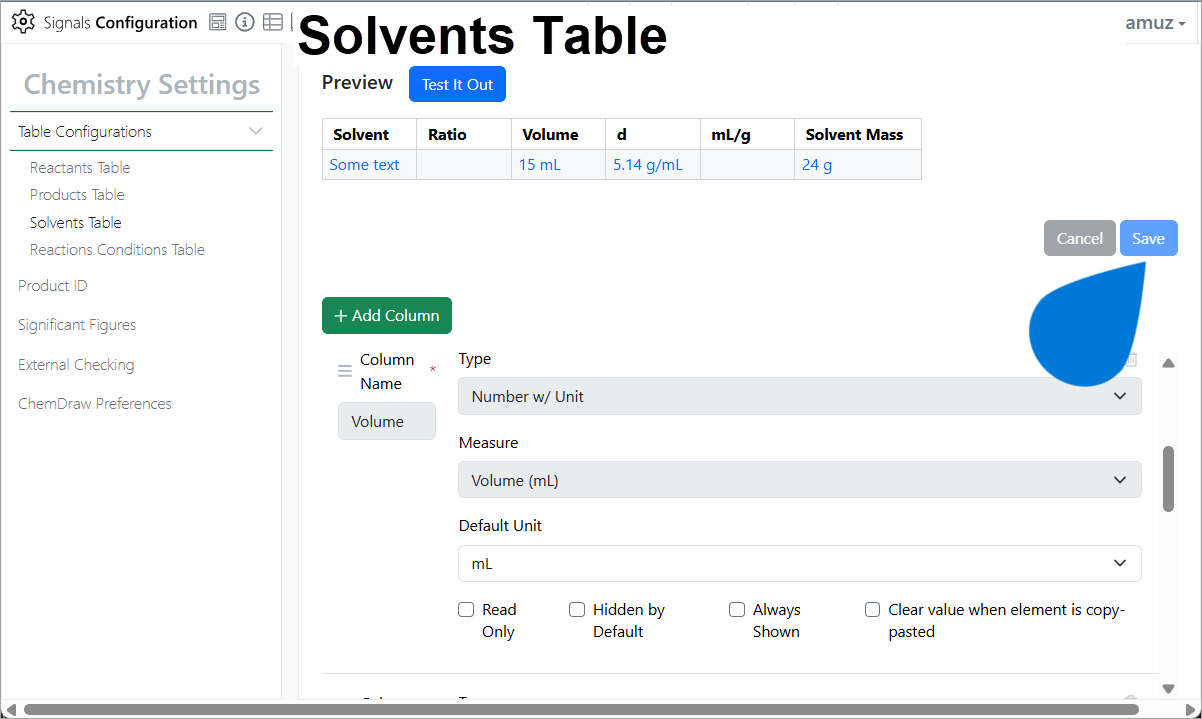

4️⃣ Solvents Table section ➡ select [Save]

Supporting Knowledge

Notes:

• Only columns created by the administrator can be modified.
• For existing columns, column name and property type fields cannot be edited, and if the column is read-only, this setting also cannot be changed. The remaining settings (Hidden by Default, Always Shown and Clear value when element is copy-pasted) can be edited.
• Administrators can also drag and drop to reorder the existing columns.
