Signals Notebook: Edit an Annotation Layer to a Plates template from the Signals Configuration

Joselyn Guadamuz

For Administrators only.

Prior to this task:

✔ A Plates template must be created.

✔ An Annotation Layer must be added.

*Required.

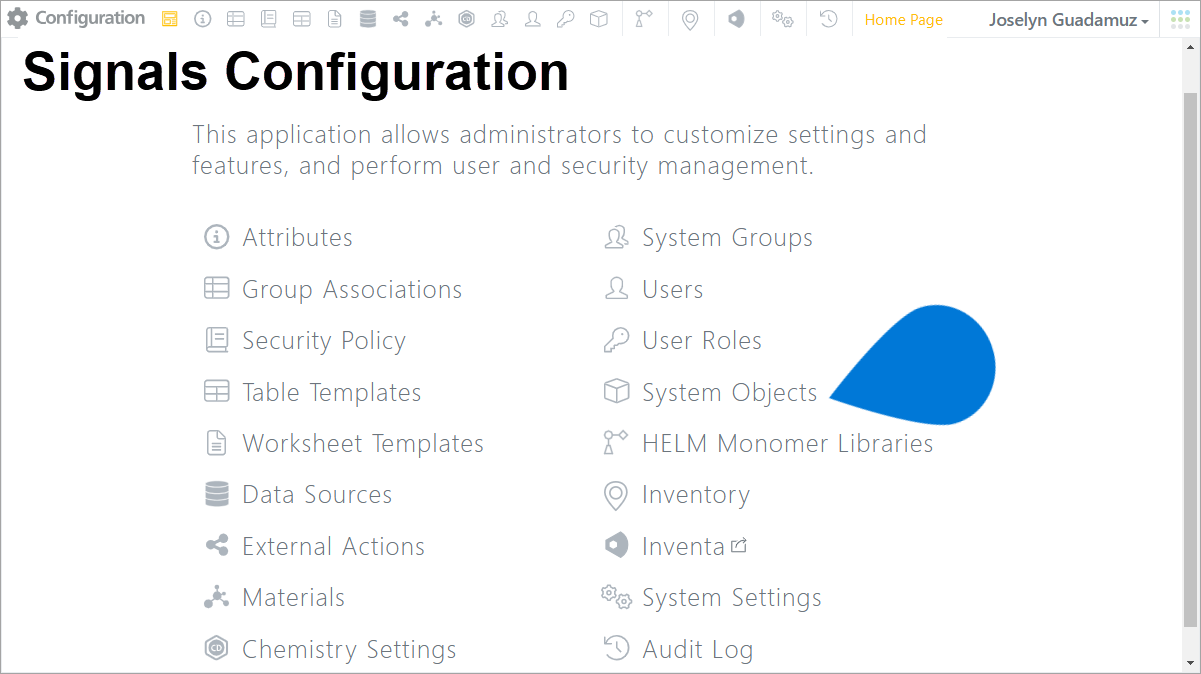

1️⃣ Signals Configuration ➡ select [System Objects]

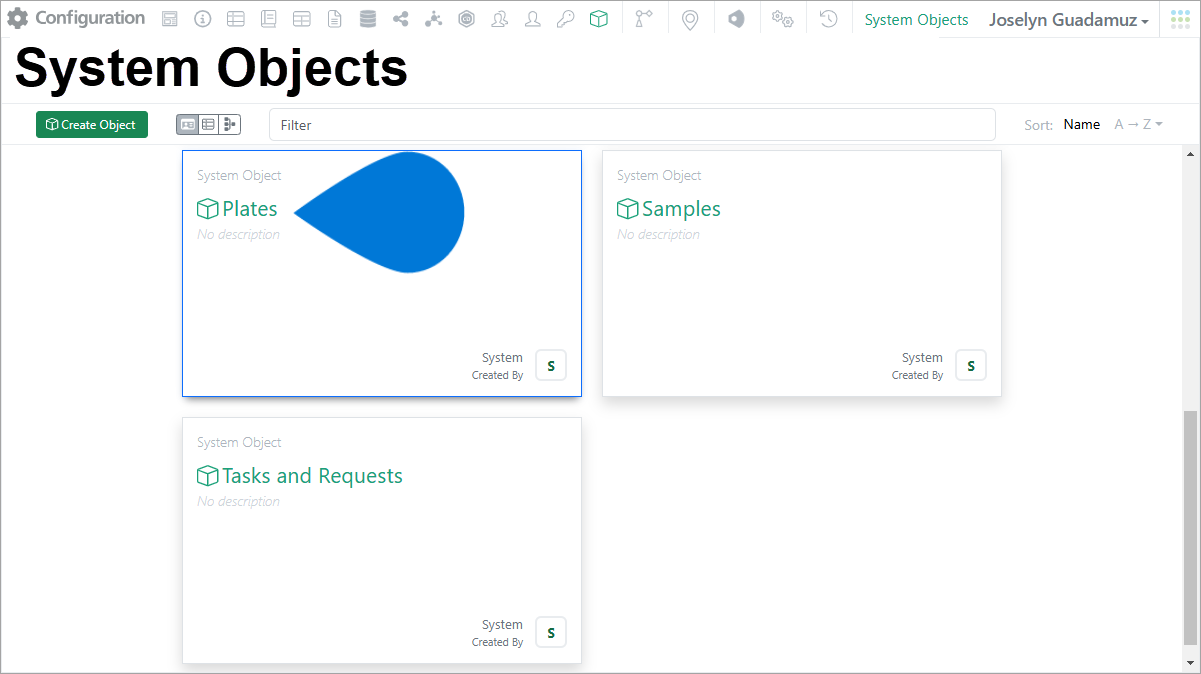

2️⃣ System Objects ➡ select Plates
3️⃣ Plates Settings pane ➡ select Templates

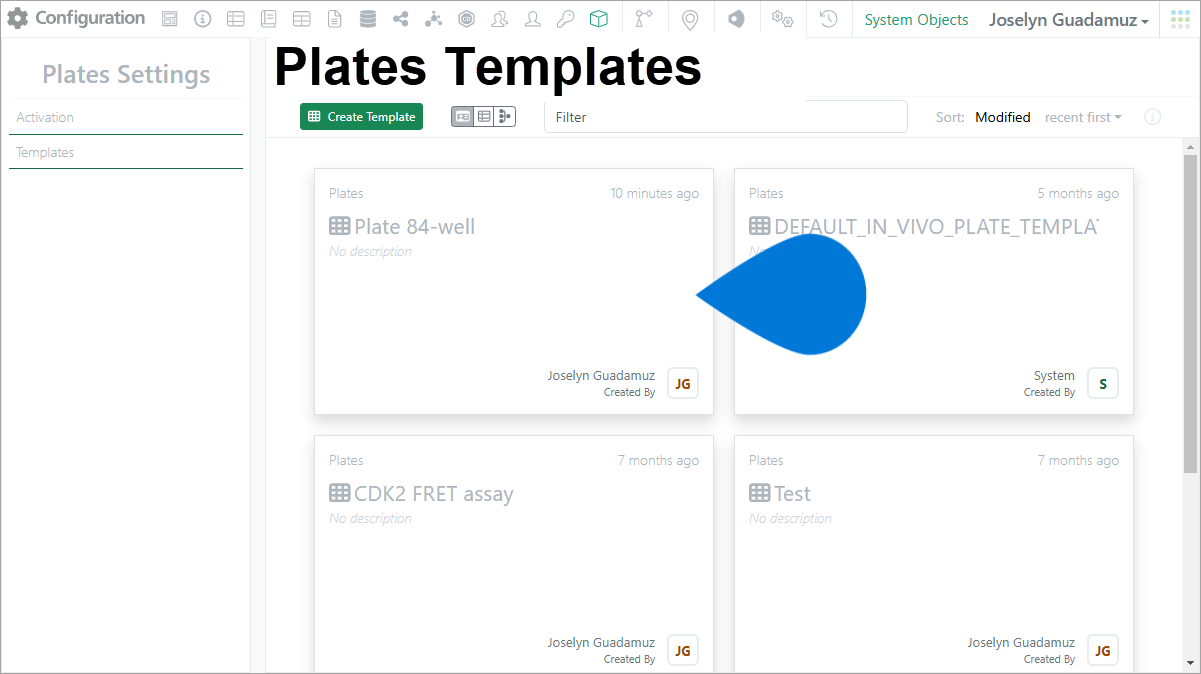

4️⃣ Plates Templates ➡ select template

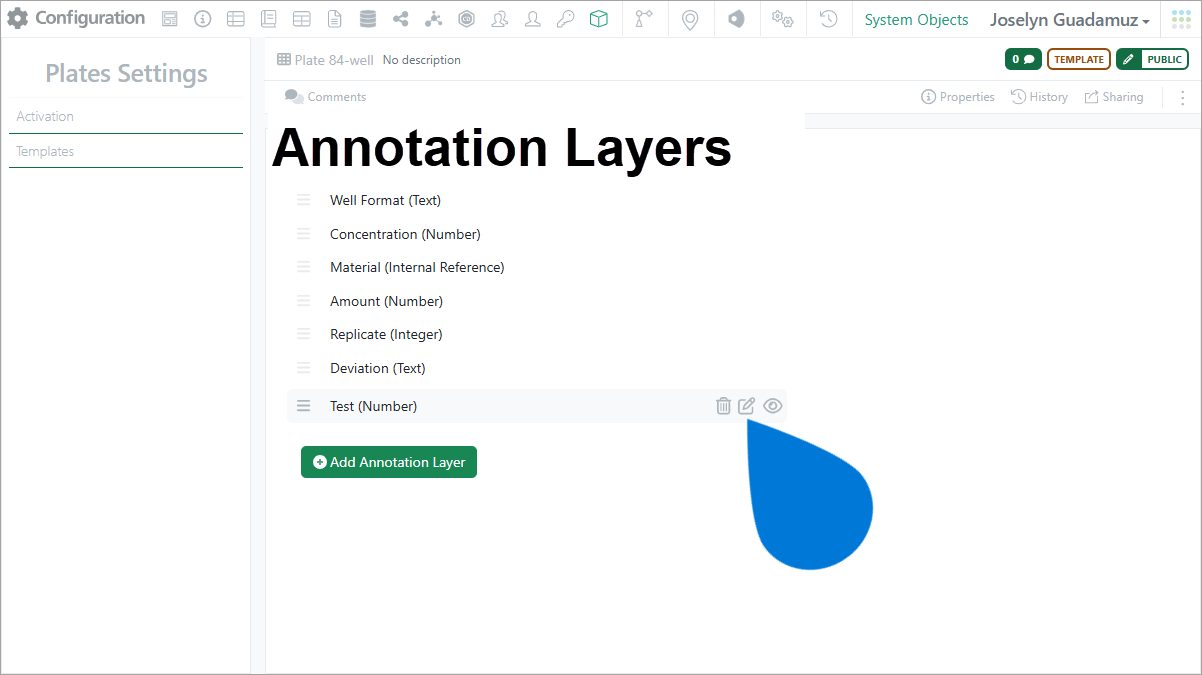

5️⃣ Annotation Layers area ➡ select annotation layer ➡ select [Edit]

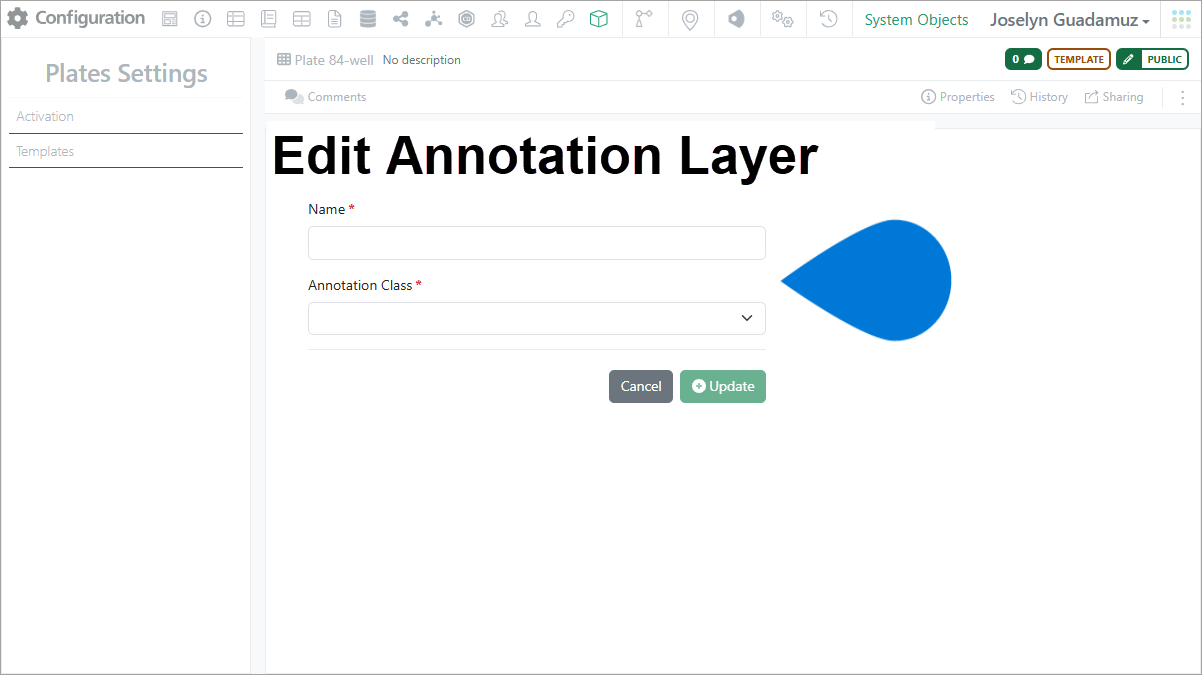

6️⃣ Edit Annotation Layer ➡ edit Name* Annotation Class*

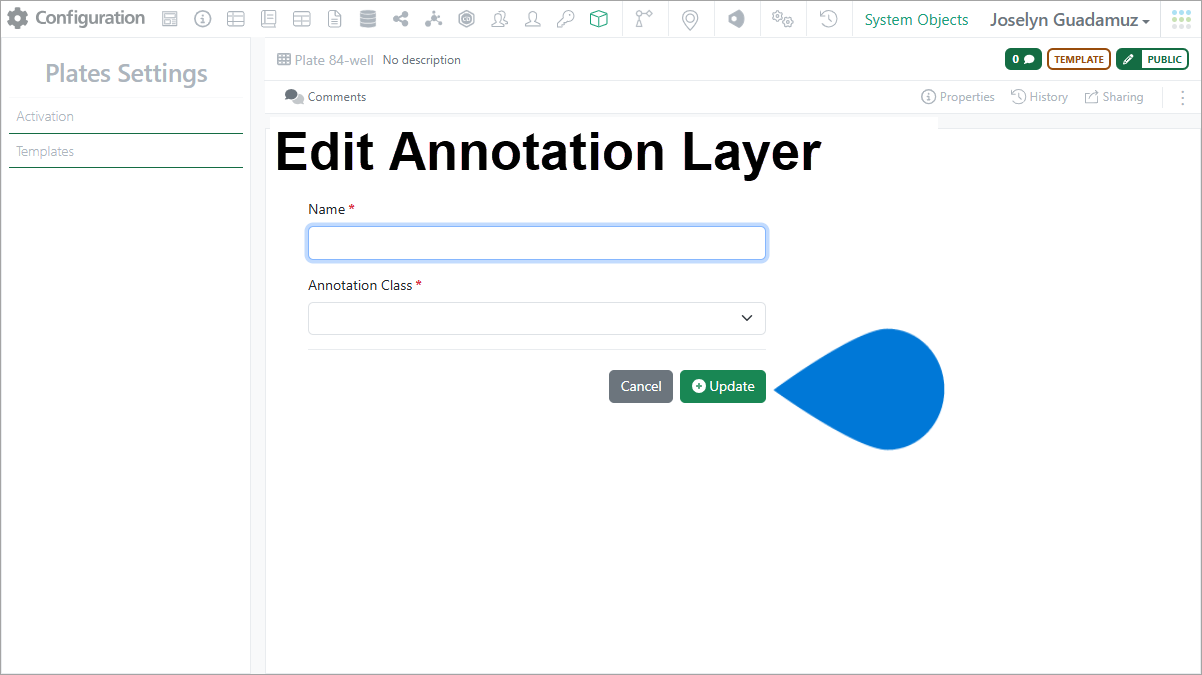

7️⃣ Edit Annotation Layer ➡ select [Update]
