Define the Global Search organizational hierarchy for a measurement type in Data Factory

Raquel Perez

For Administrators only.

Prior to this task:

✔ Measurement type must be created.

*Required.

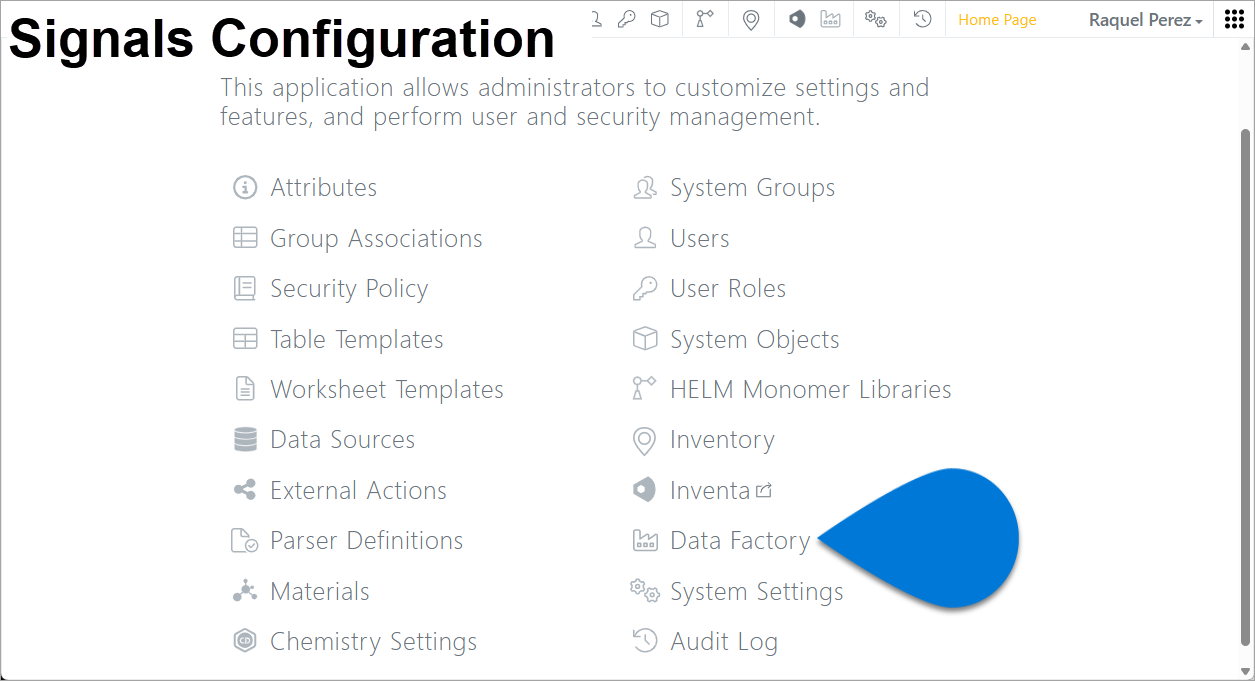

1️⃣ Signals Configuration ➡ select [Data Factory]

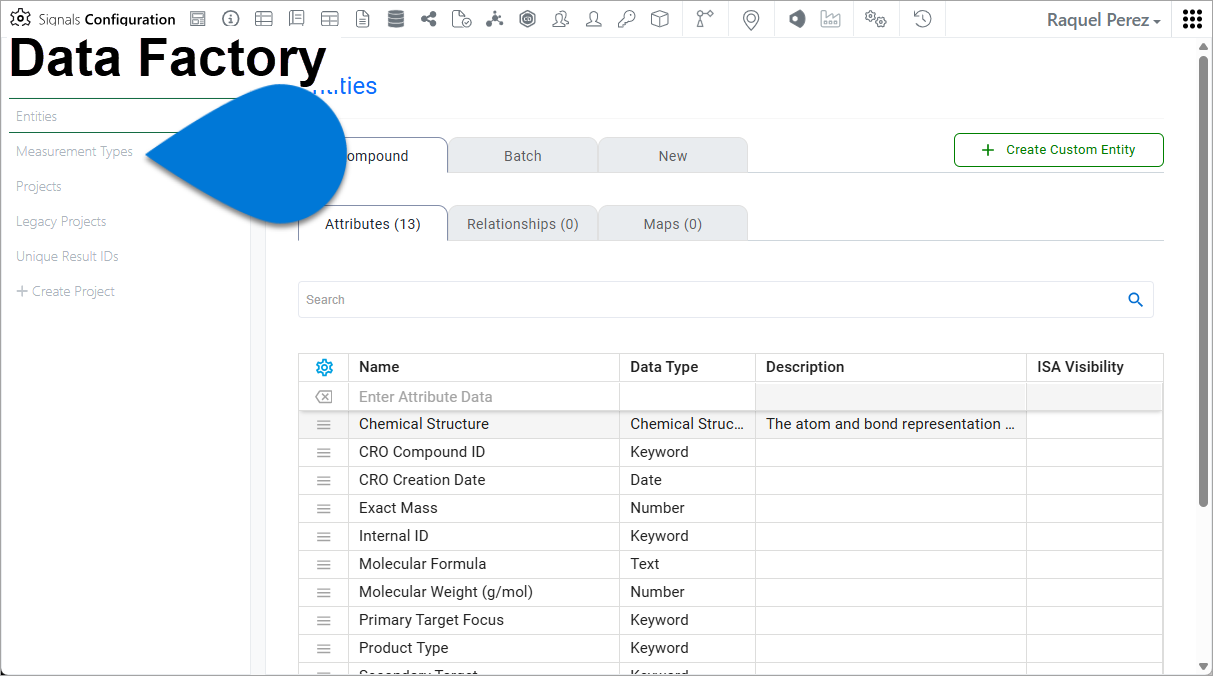

2️⃣ Data Factory pane ➡ select Measurement Types

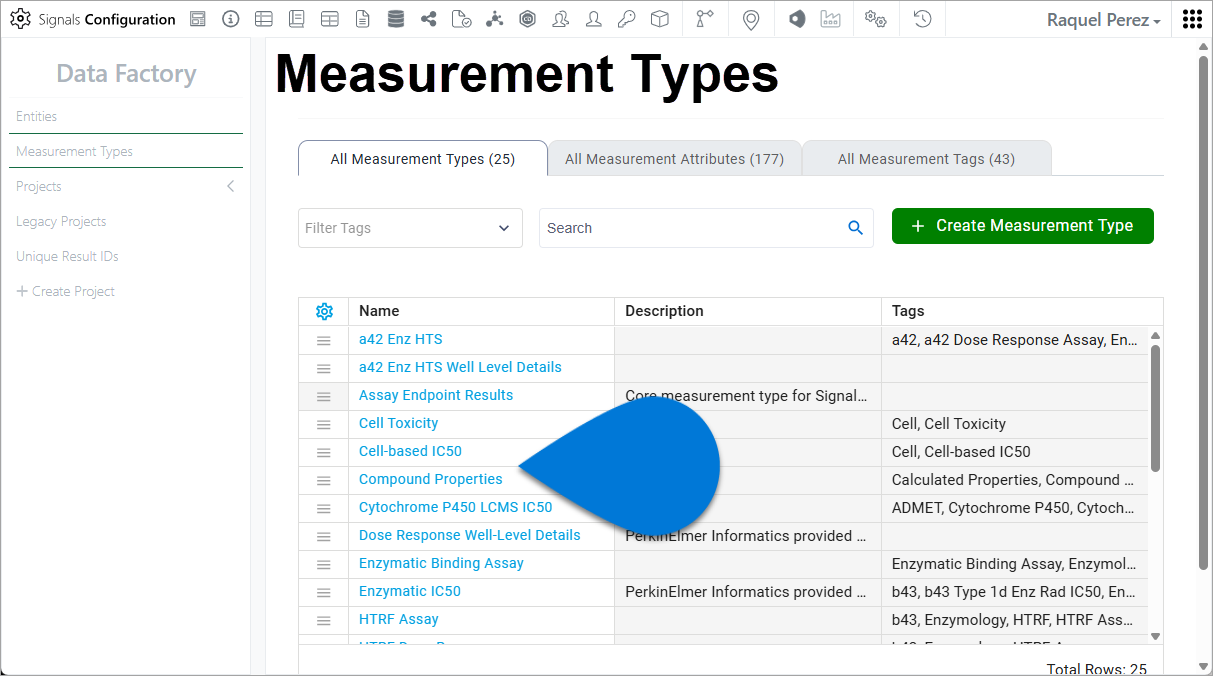

3️⃣ Measurement Types section ➡ All Measurement Types ➡ select measurement type

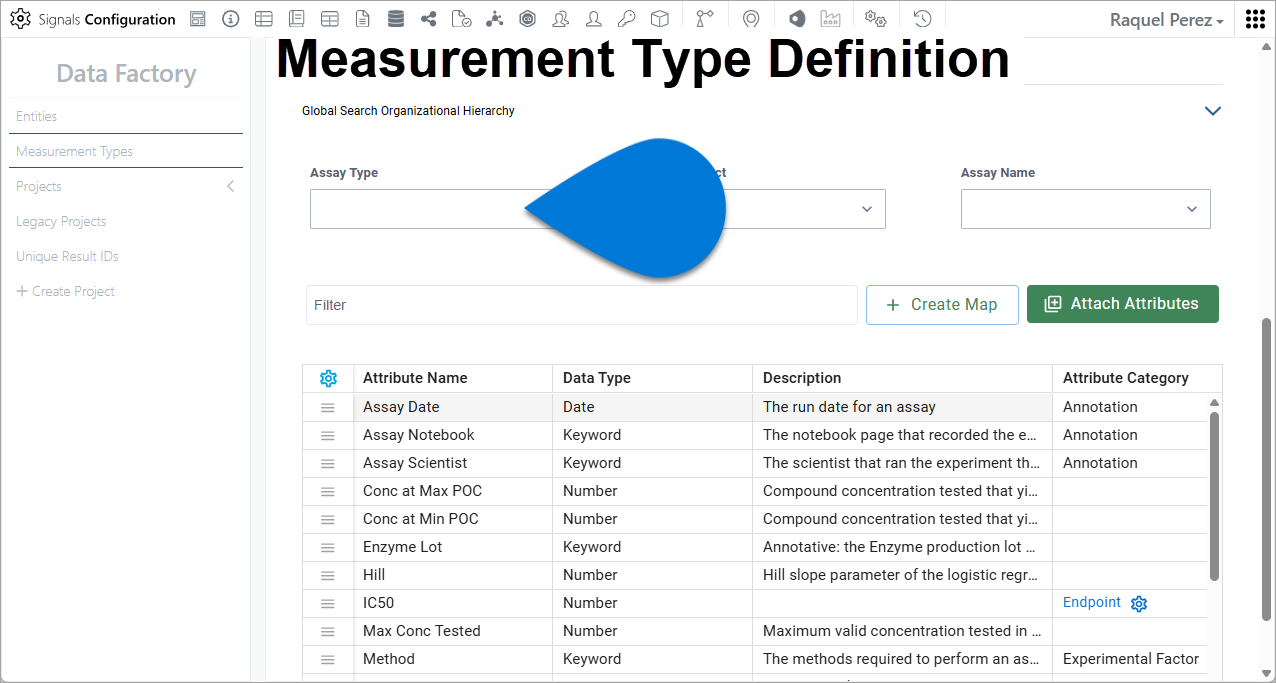

4️⃣ Measurement Type Definition area ➡ select Global Search Organizational Hierarchy ➡ Assay Type ➡ select Define an expression
5️⃣ Define Organizational Hierarchy window ➡ Assay Type ➡ select Define an expression
6️⃣ Define Organizational Hierarchy window ➡ Expression Builder Canvas ➡ Add attributes to build an expression and/or type in free text ➡ select [Apply]
7️⃣ Define Organizational Hierarchy window ➡ Biology Project ➡ select Define an expression
8️⃣ Define Organizational Hierarchy window ➡ Expression Builder Canvas ➡ Add attributes to build an expression and/or type in free text ➡ select [Apply]
9️⃣ Define Organizational Hierarchy window ➡ Assay Name ➡ select Define an expression
🔟 Define Organizational Hierarchy window ➡ Expression Builder Canvas ➡ Add attributes to build an expression and/or type in free text ➡ select [Apply]
1️⃣1️⃣ Define Organizational Hierarchy window ➡ select [Save Organizational Hierarchy]
