For Administrators only.
Prior to this task:
✔ In Vitro Analysis template must be created.
✔ Data Assembly must be defined.
*Required.

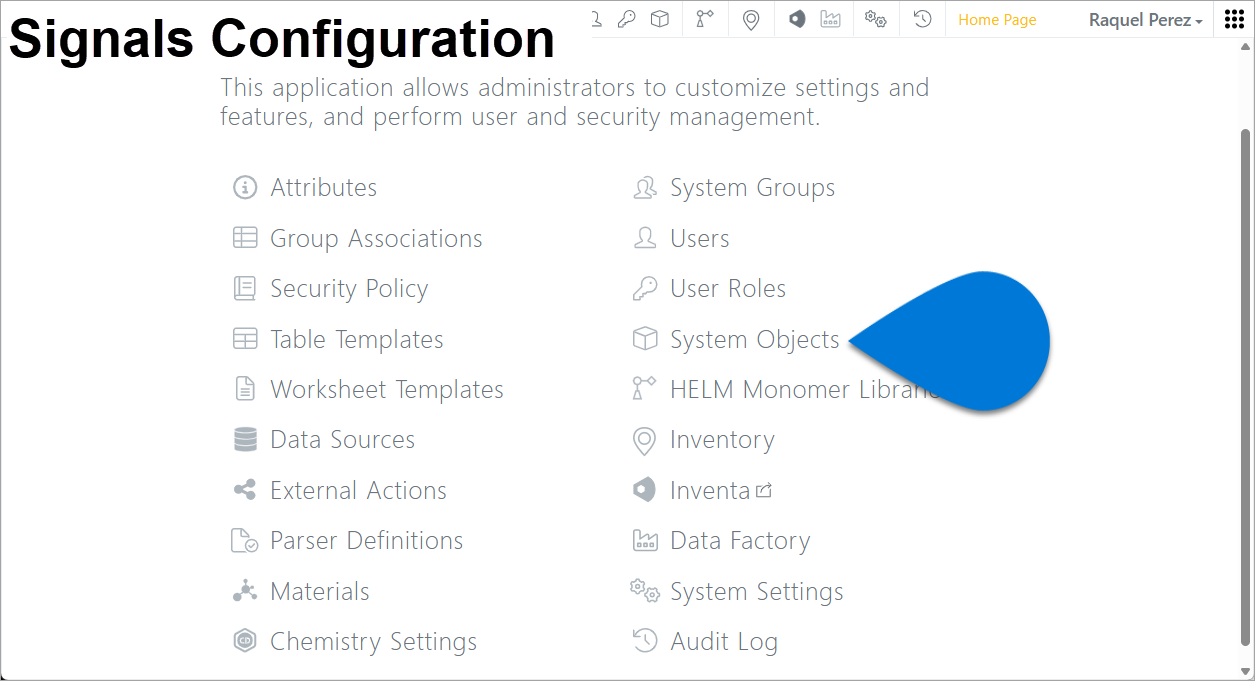

| 1️⃣ Signals Configuration ➡ select | |

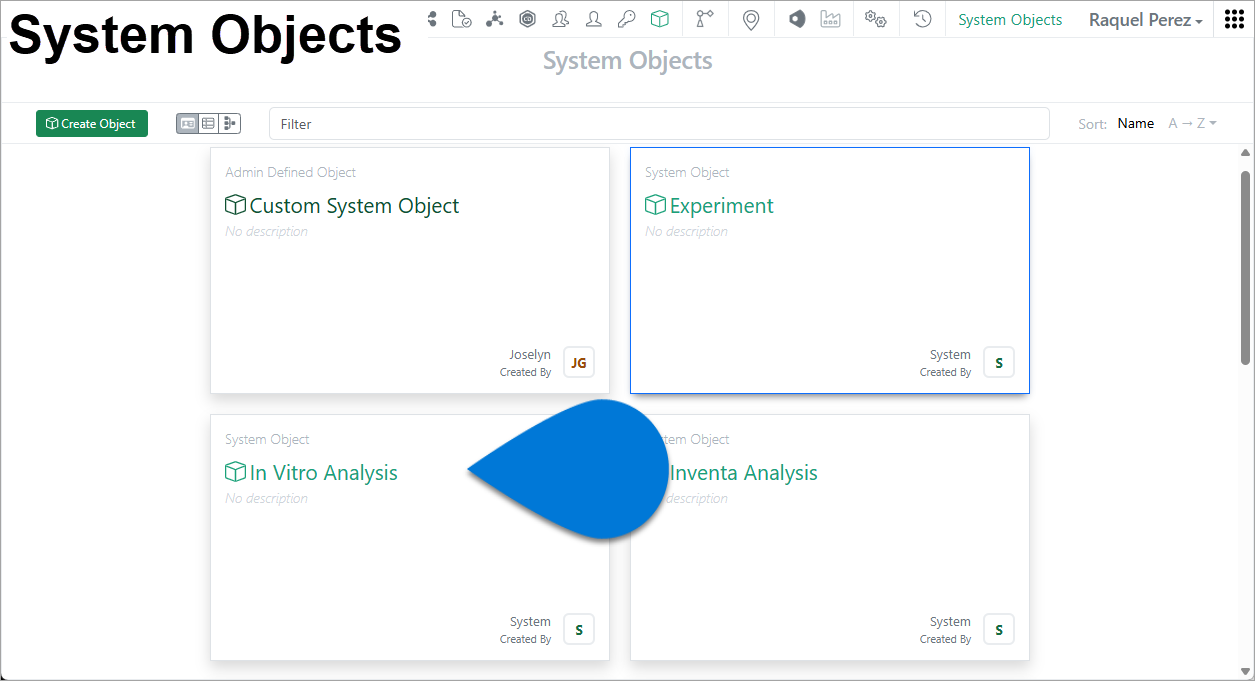

| 2️⃣ System Objects ➡ select In Vitro Analysis | |

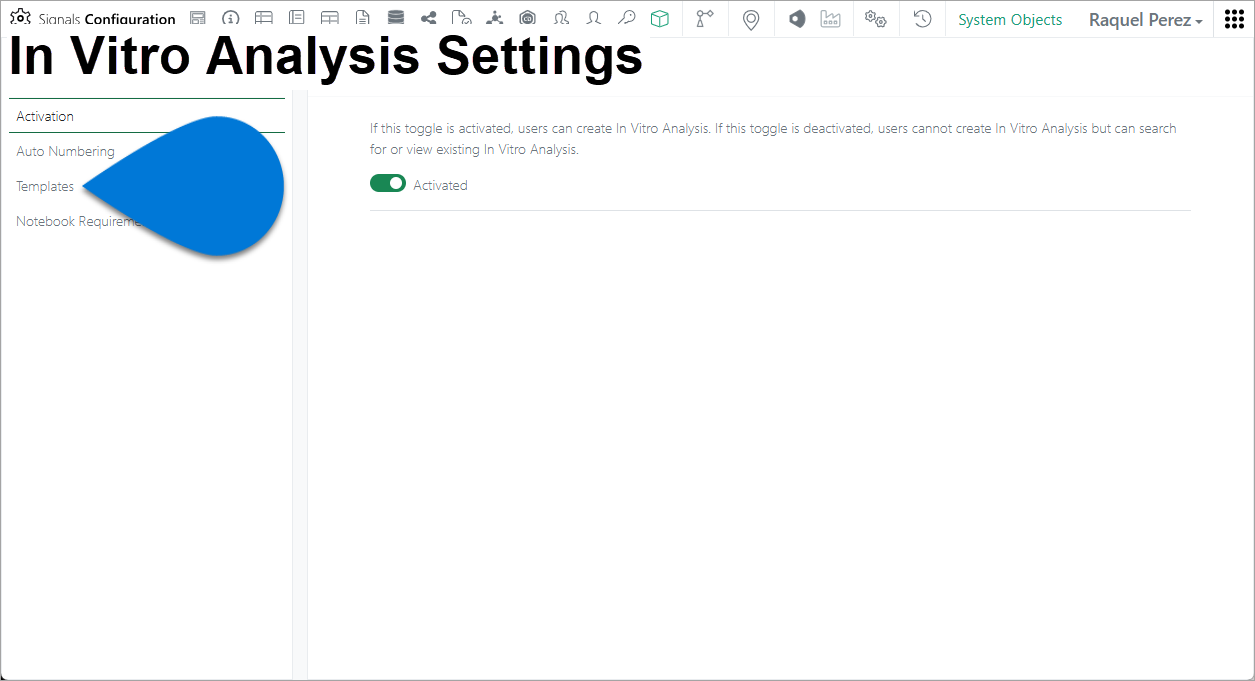

| 3️⃣ In Vitro Analysis Settings pane ➡ select Templates | |

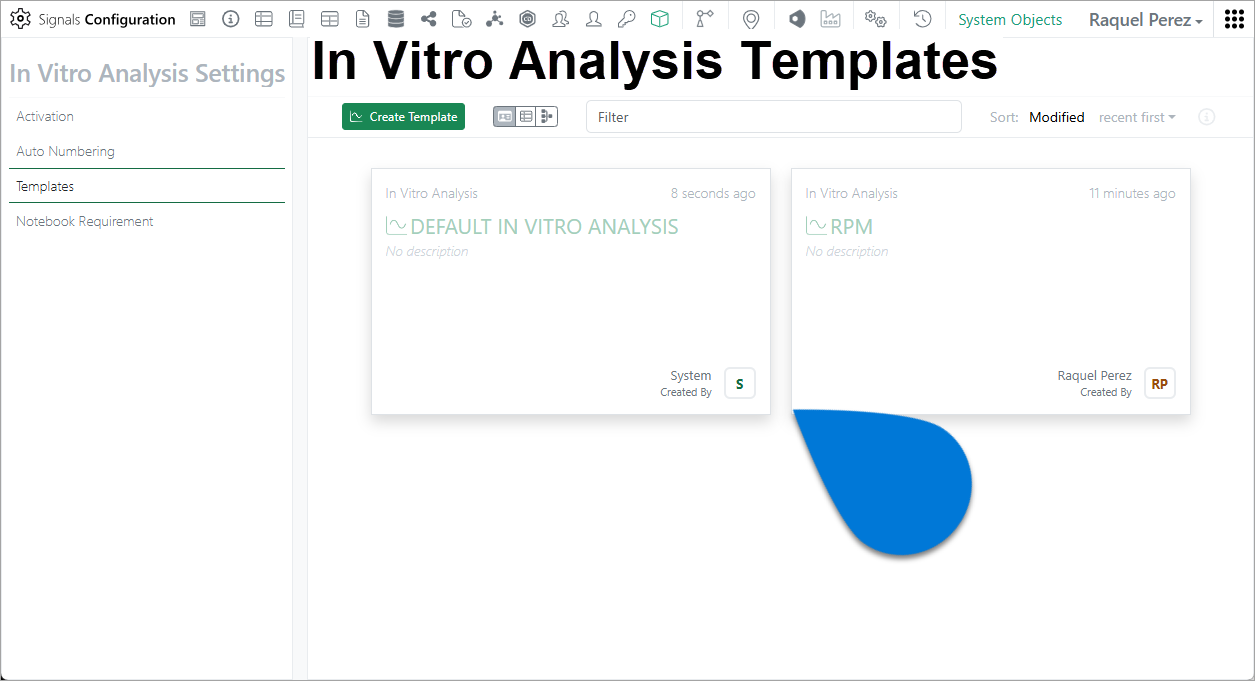

| 4️⃣ In Vitro Analysis Templates section ➡ select in vitro analysis template | |

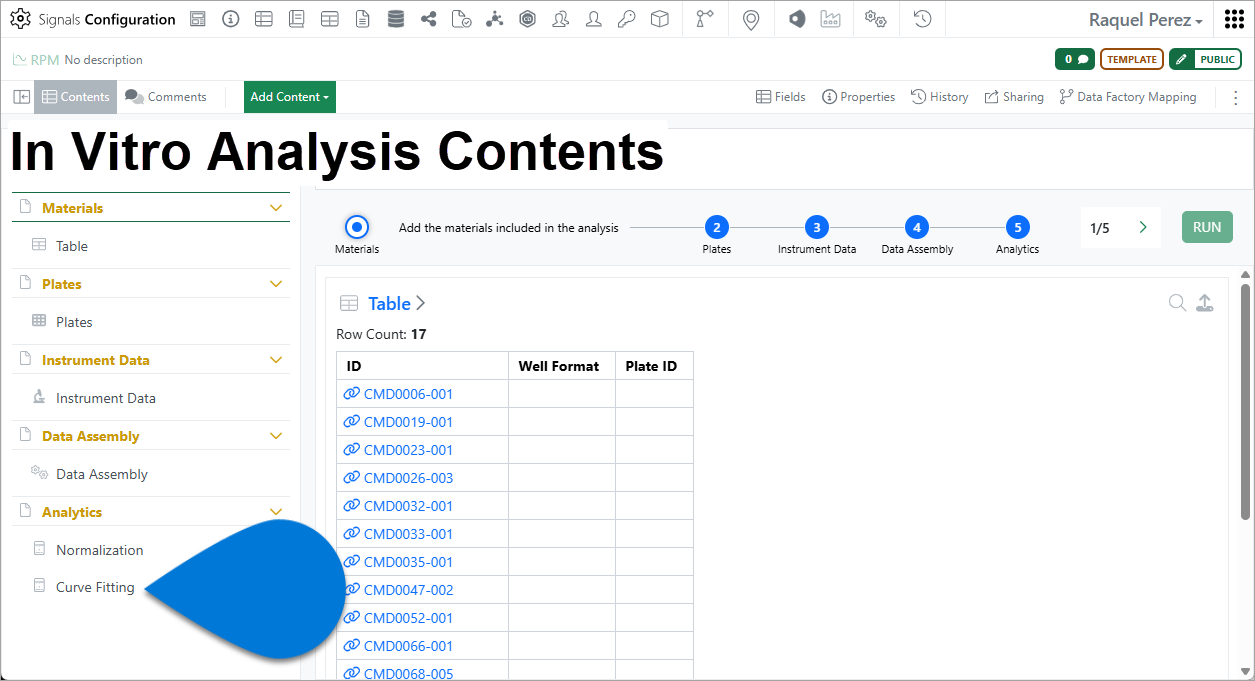

| 5️⃣ In Vitro Analysis Contents ➡ Analytics ➡ select | |

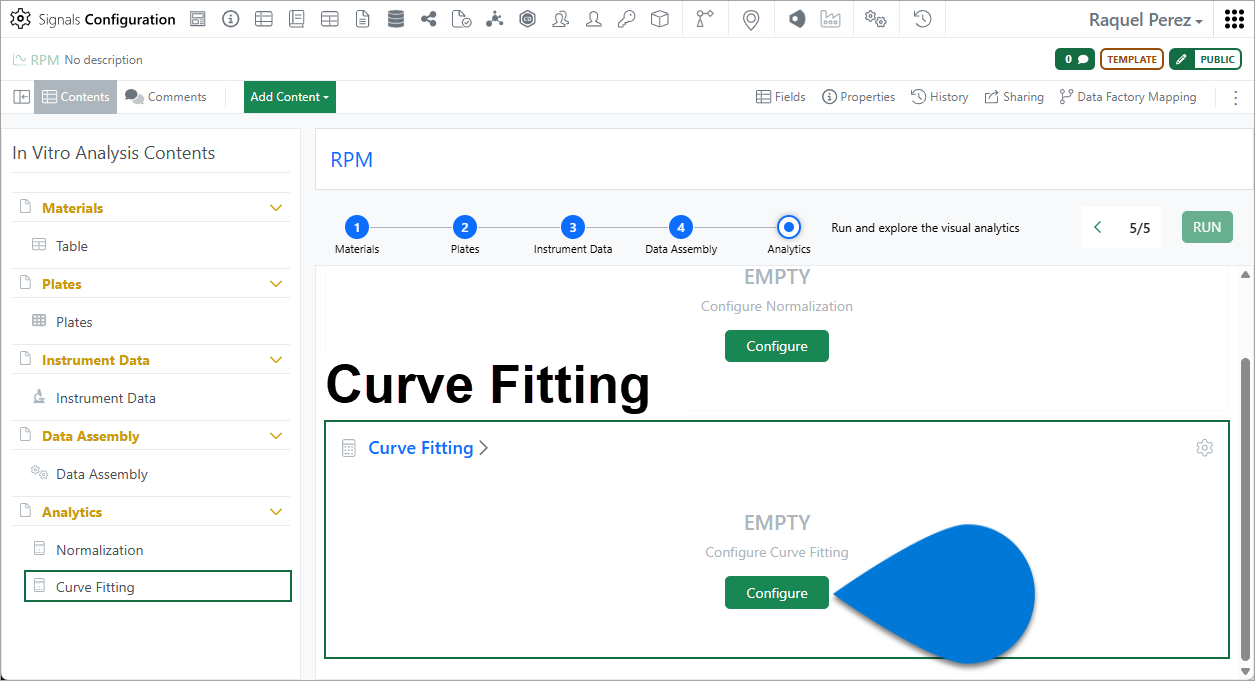

| 6️⃣ Curve Fitting section ➡ select | |

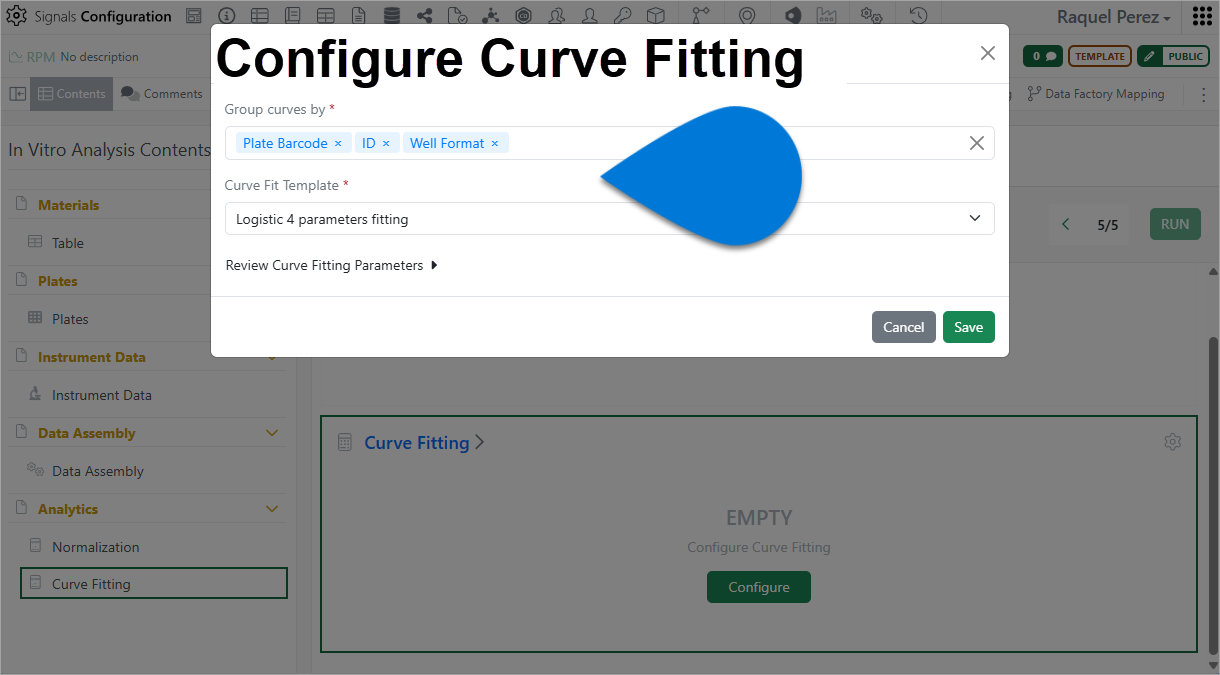

7️⃣ Configure Curve Fitting window ➡ select
| |

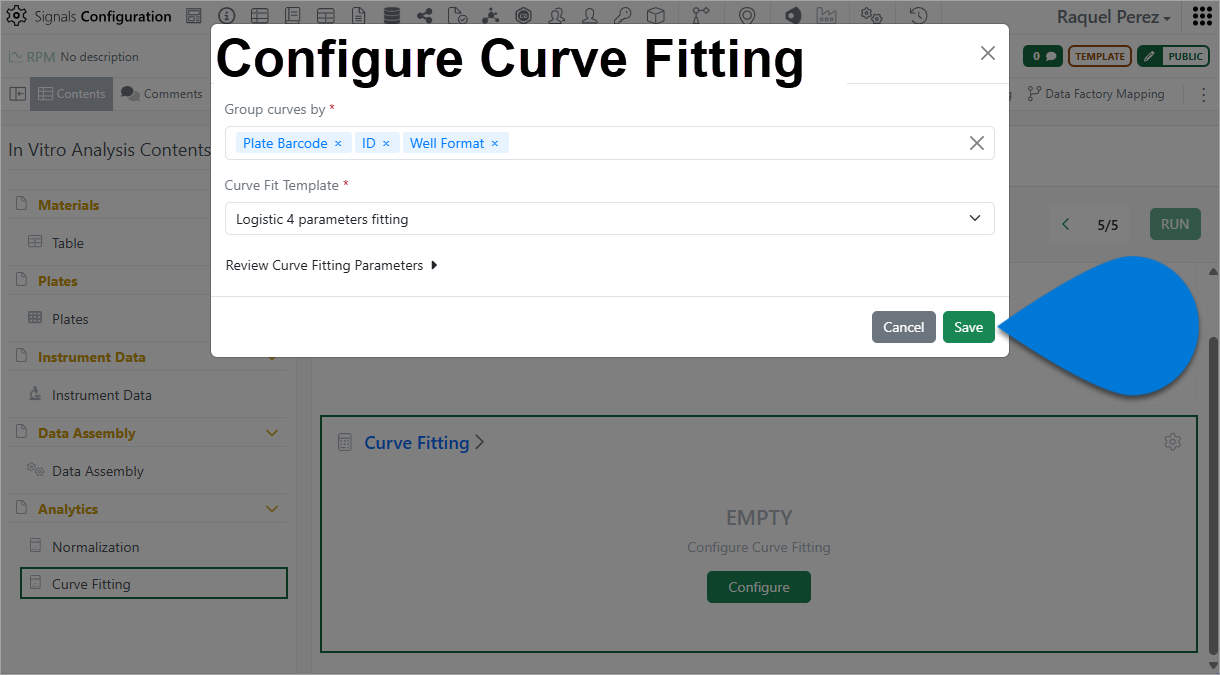

| 8️⃣ Configure Curve Fitting window ➡ select |
Supporting Knowledge
Note: The [RUN] button remains disabled until all Analytics parameters are configured.
† Parameters sets:
- Adjustments to the default parameters can be made by editing the table directly, where applicable.
- Multiple sets of custom parameters can be created, managed, and associated to the In Vitro Analysis Template. To do so, from the Configure Curve Fitting window, under Parameter Sets, select
[New Set]. From the Create new parameter set window, type a new name, then select
[Create]. From the new parameter set, modify the parameters as desired. Finally, from the Configure Curve Fitting window, select
[Save].
- To delete a parameter set, from the Configure Curve Fitting window, under Parameter Sets, select the parameter set to delete, then select
[Delete parameter set]. From the Delete Parameter Set window, select
[Delete Parameter Set].
