Define project mappings for an In Vitro Analysis template from the Signals Configuration

For Administrators only.

Prior to this task:

✔ In Vitro Analysis template must be created.

✔ A Data Factory Mapping must be added.

✔ Measurement Type(s) must be defined.

*Required.

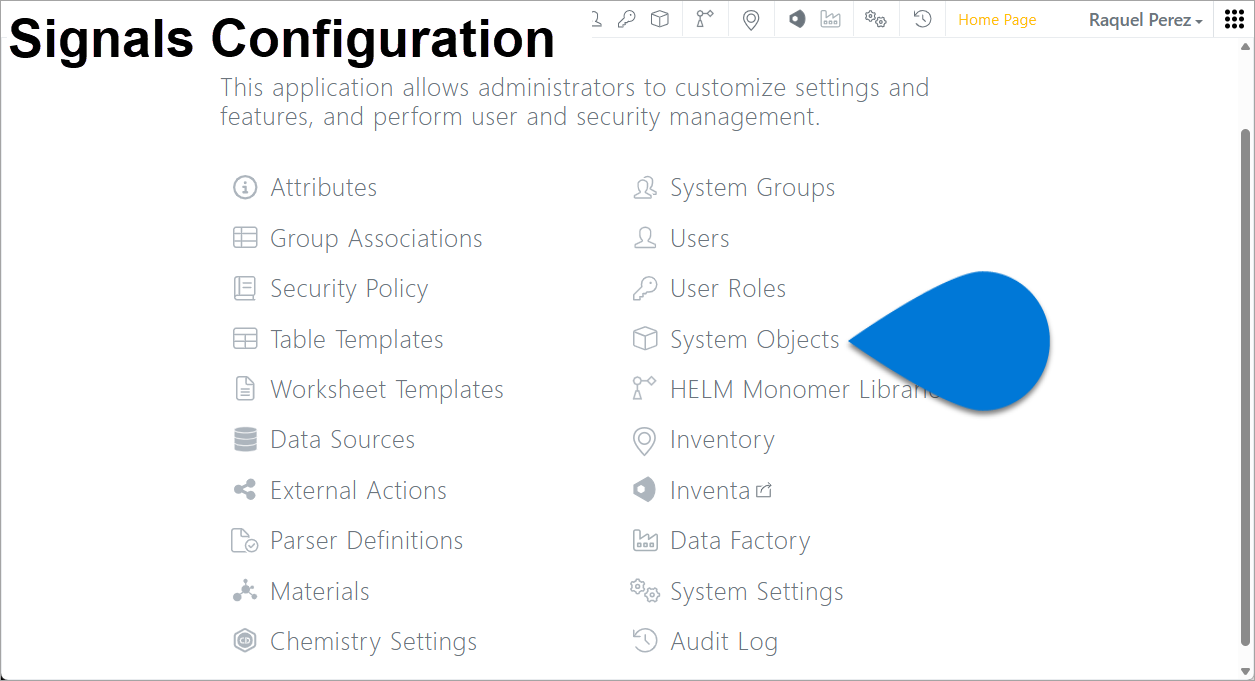

1️⃣ Signals Configuration ➡ select [System Objects]

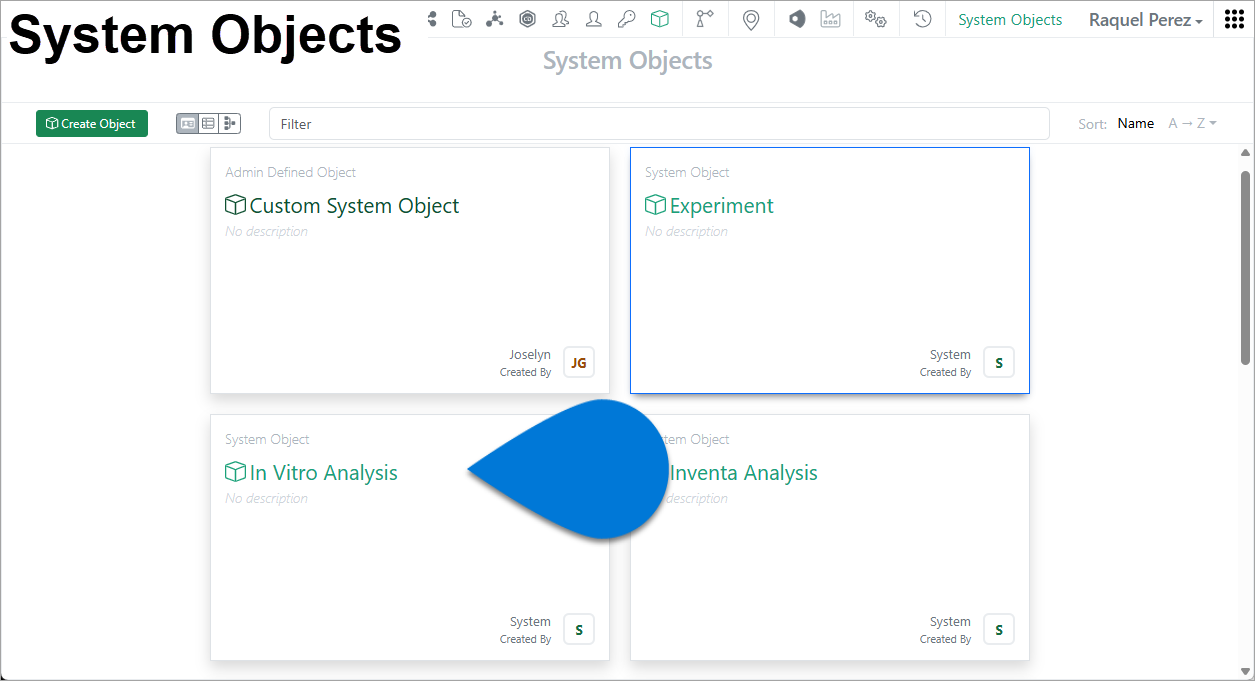

2️⃣ System Objects ➡ select In Vitro Analysis

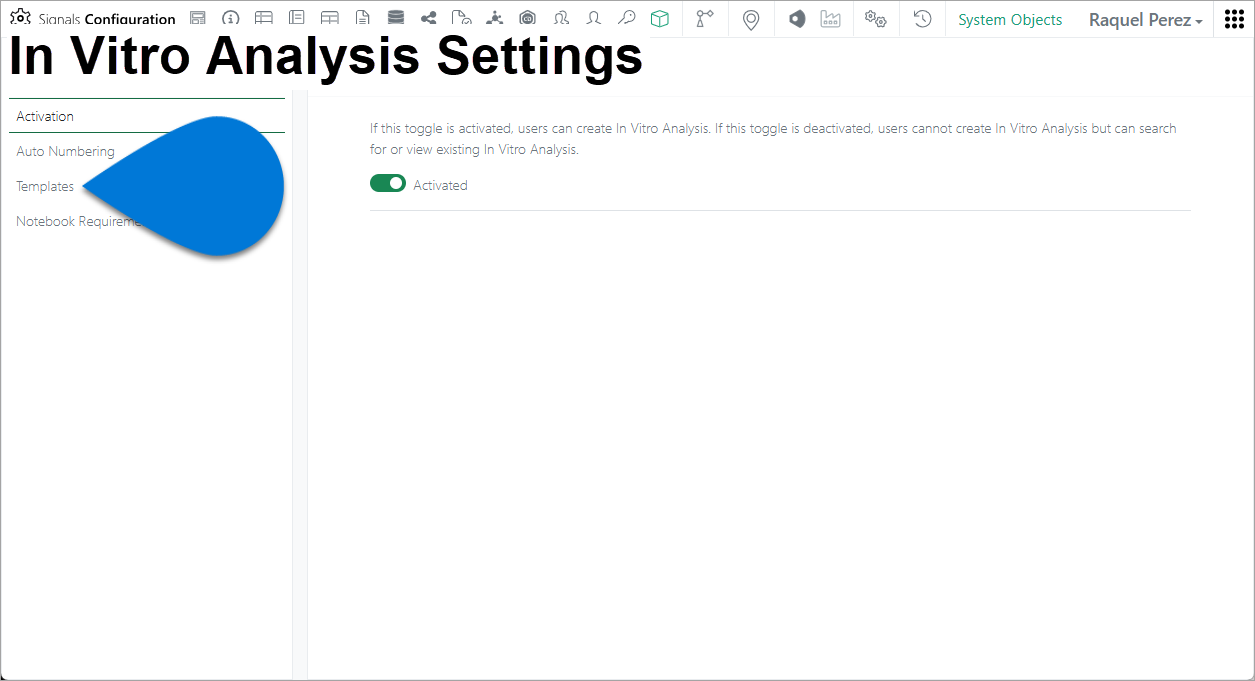

3️⃣ In Vitro Analysis Settings pane ➡ select Templates

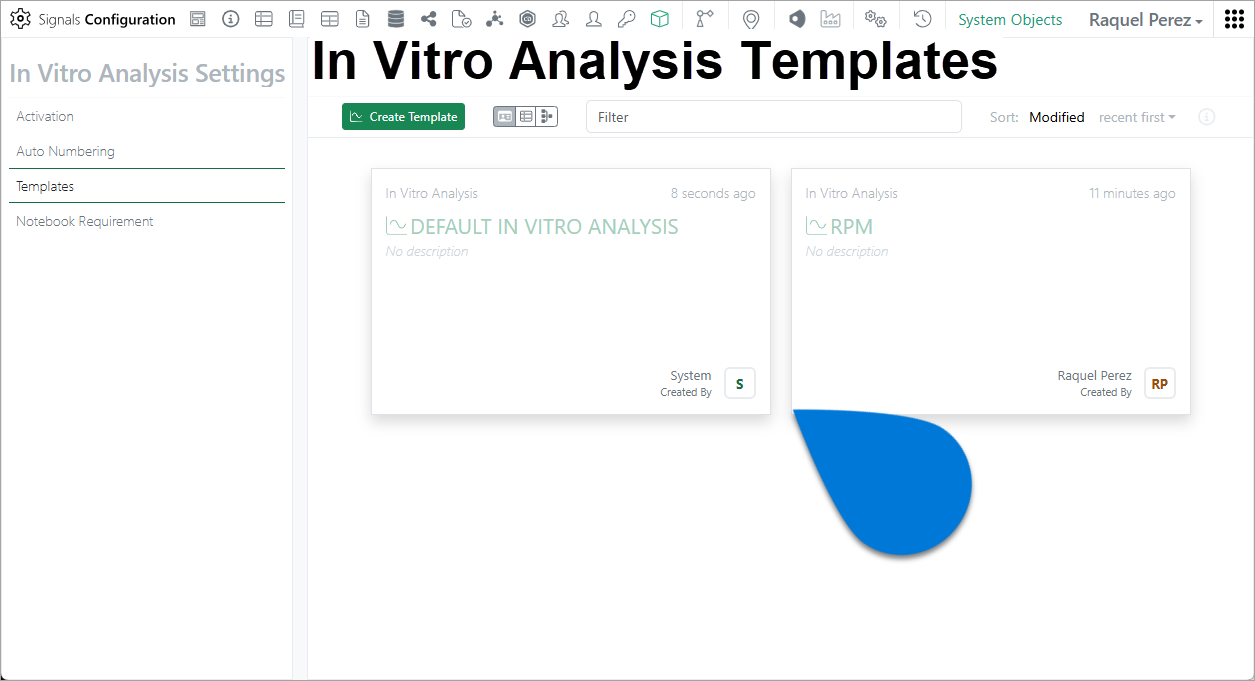

4️⃣ In Vitro Analysis Templates section ➡ select in vitro analysis template

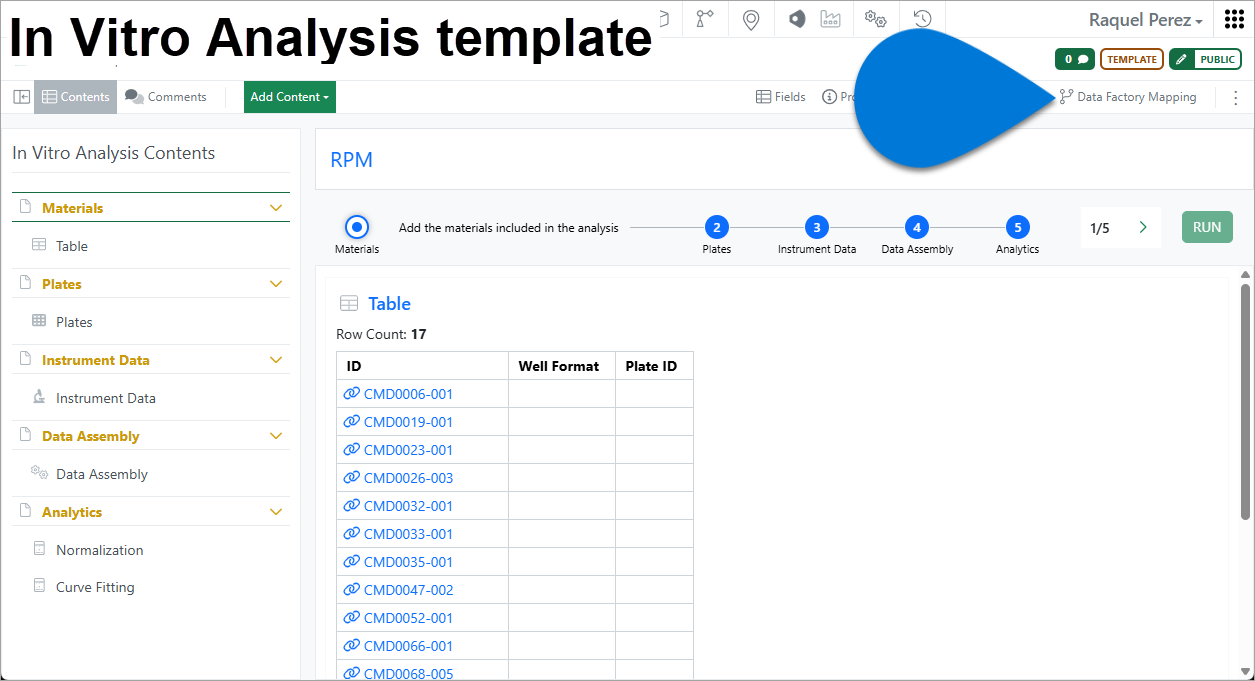

5️⃣ In Vitro Analysis template ➡ select [Data Factory Mapping]

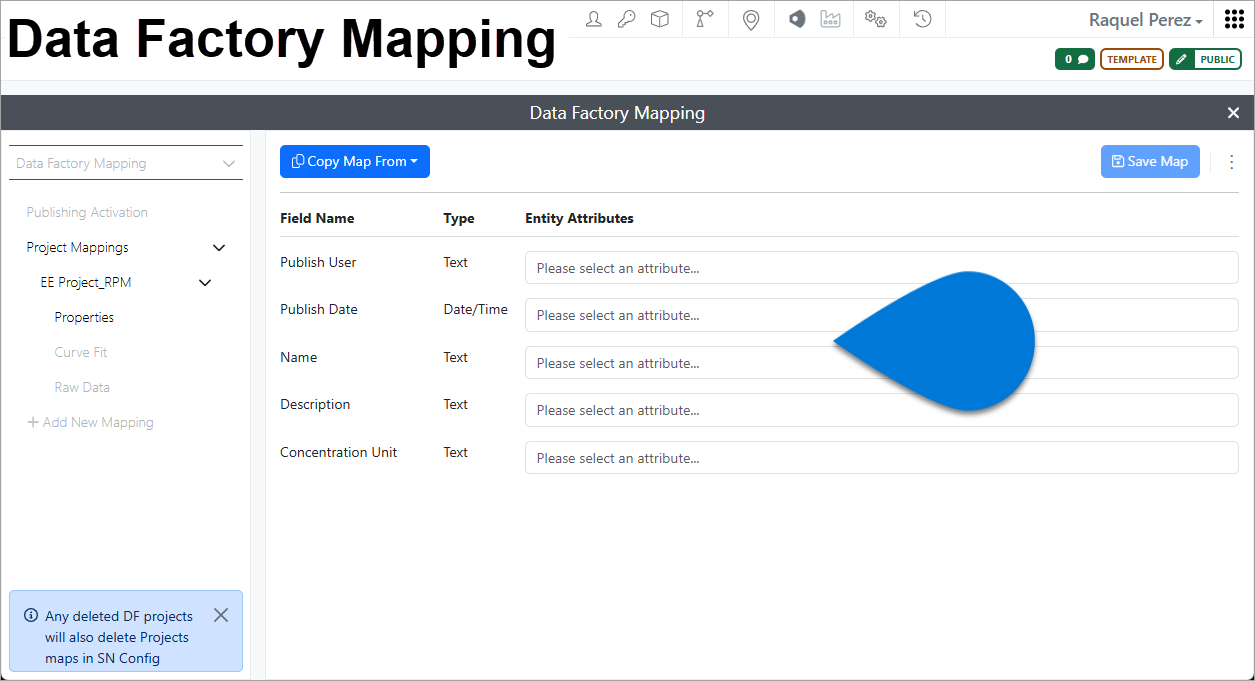

6️⃣ Data Factory Mapping ➡ Project Mappings ➡ select project ➡ Properties ➡ select Entity Attributes

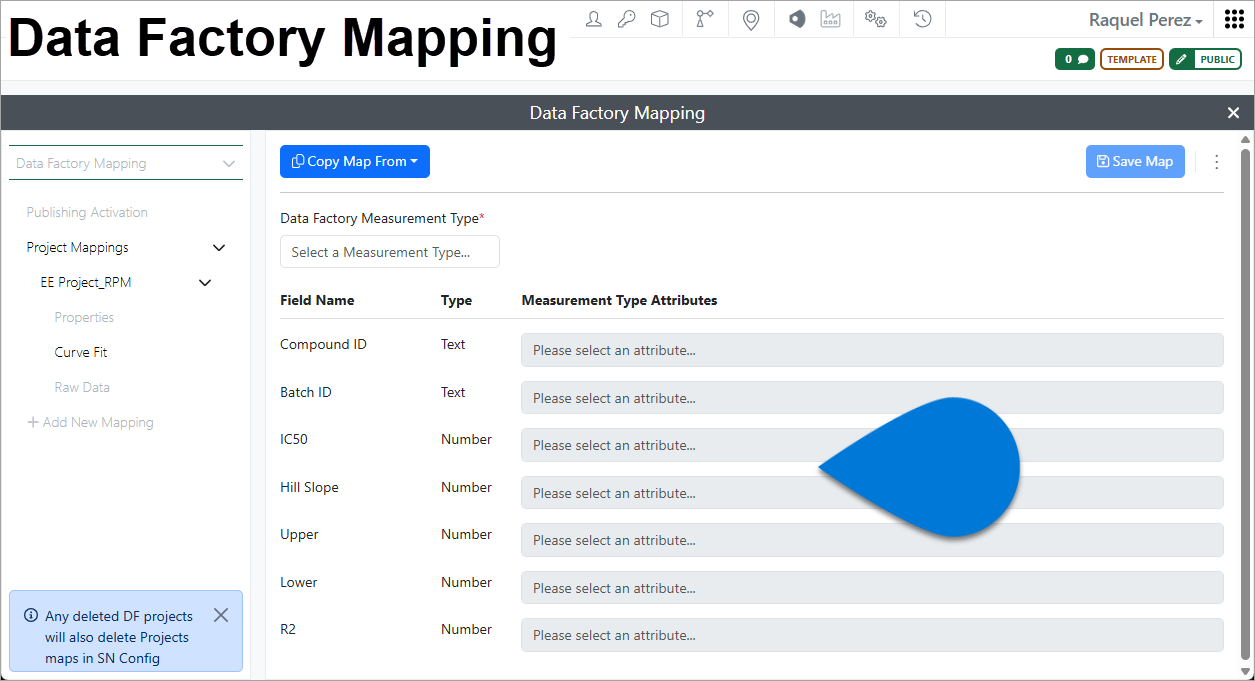

7️⃣ Data Factory Mapping ➡ project ➡ select Curve Fit ➡ select Data Factory Measurement Type* Measurement Type Attributes
8️⃣ Data Factory Mapping ➡ project ➡ select Raw Data ➡ select Data Factory Measurement Type* Measurement Type Attributes

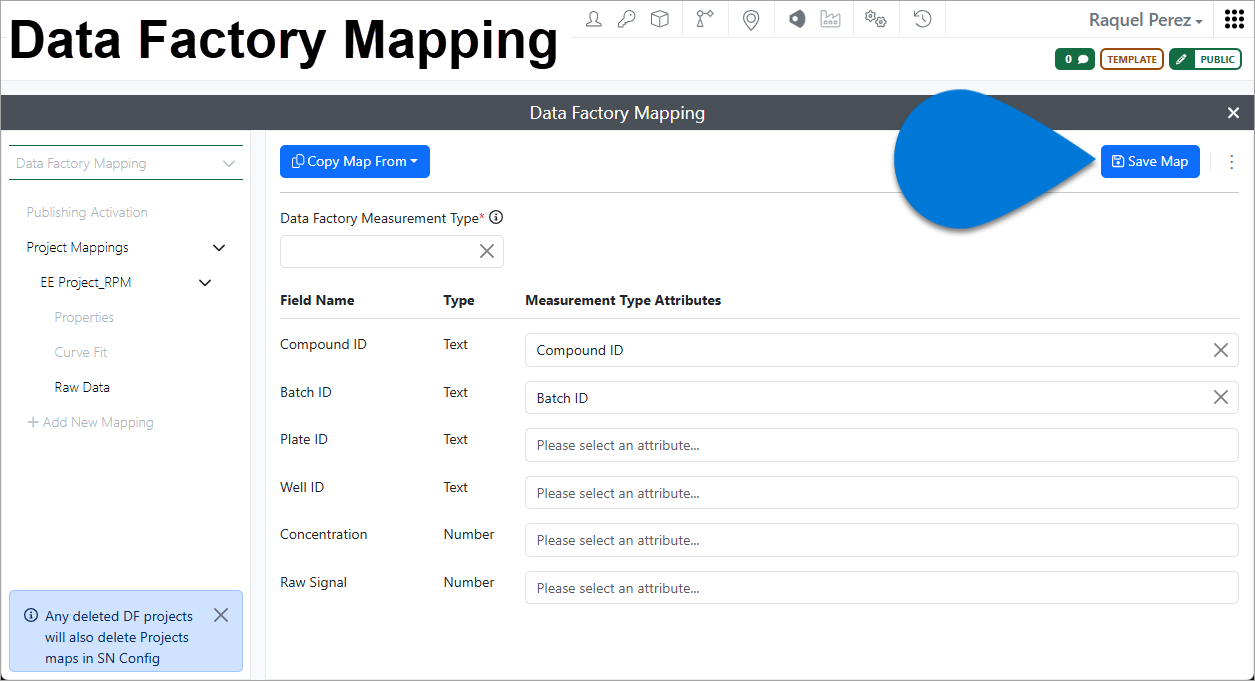

9️⃣ Data Factory Mapping ➡ select [Save Map]

Supporting Knowledge

⚠️ Important: All maps (Properties, Curve Fit, and Raw Data) must be completed with the corresponding attributes before data can be published.
