Add values to the well format annotation of a Plate in an In Vitro Analysis from the Signals Configuration

For Administrators only.

Prior to this task:

✔ In Vitro Analysis template must be created.

✔ Plate for an In Vitro Analysis template must be created.

*Required.

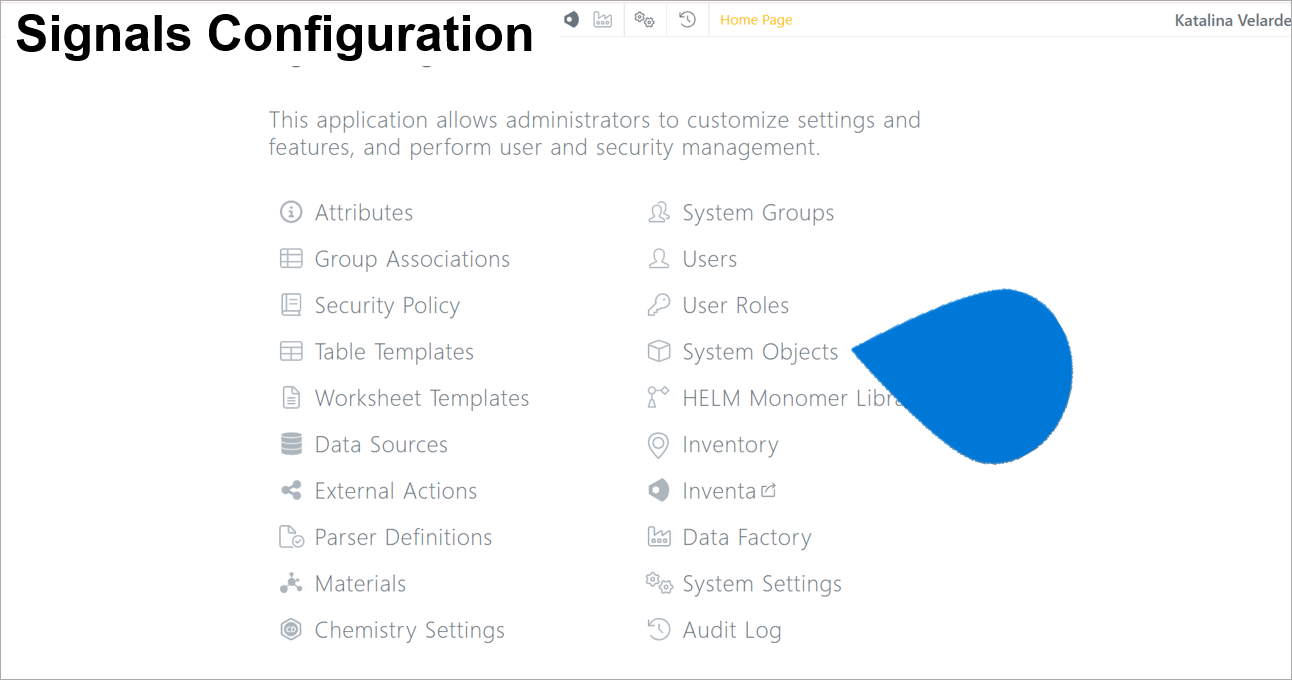

1️⃣ Signals Configuration ➡ select [System Objects]

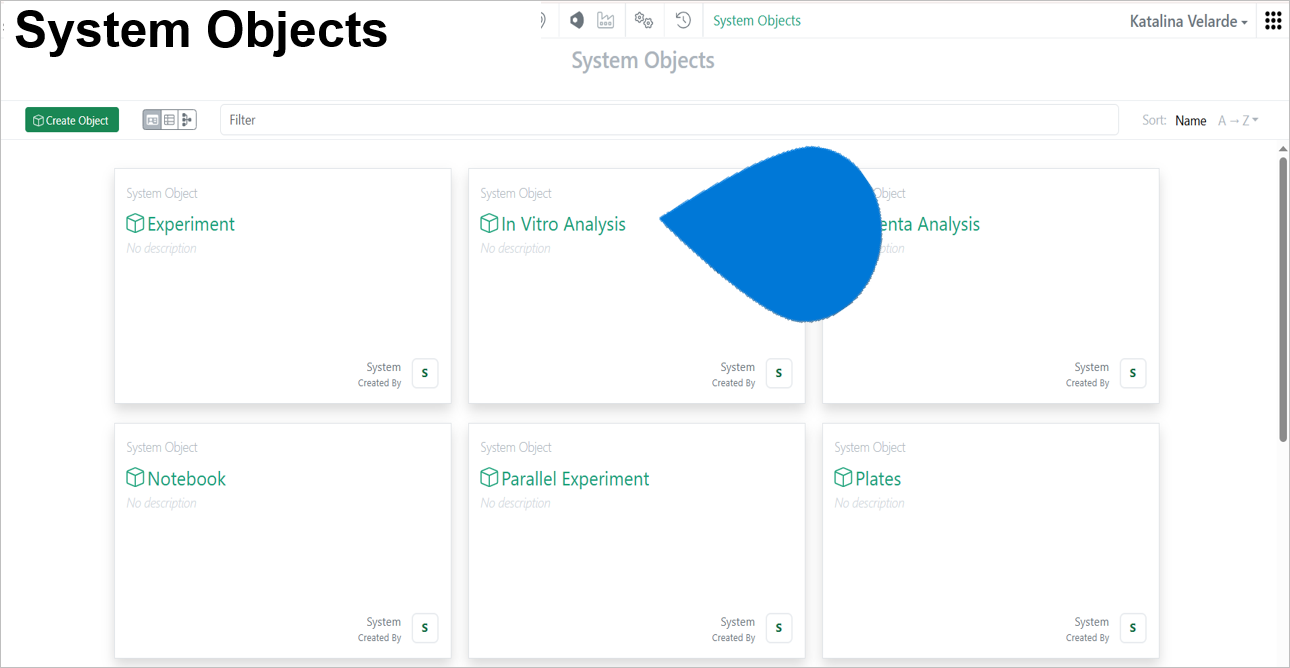

2️⃣ System Objects ➡ select In Vitro Analysis

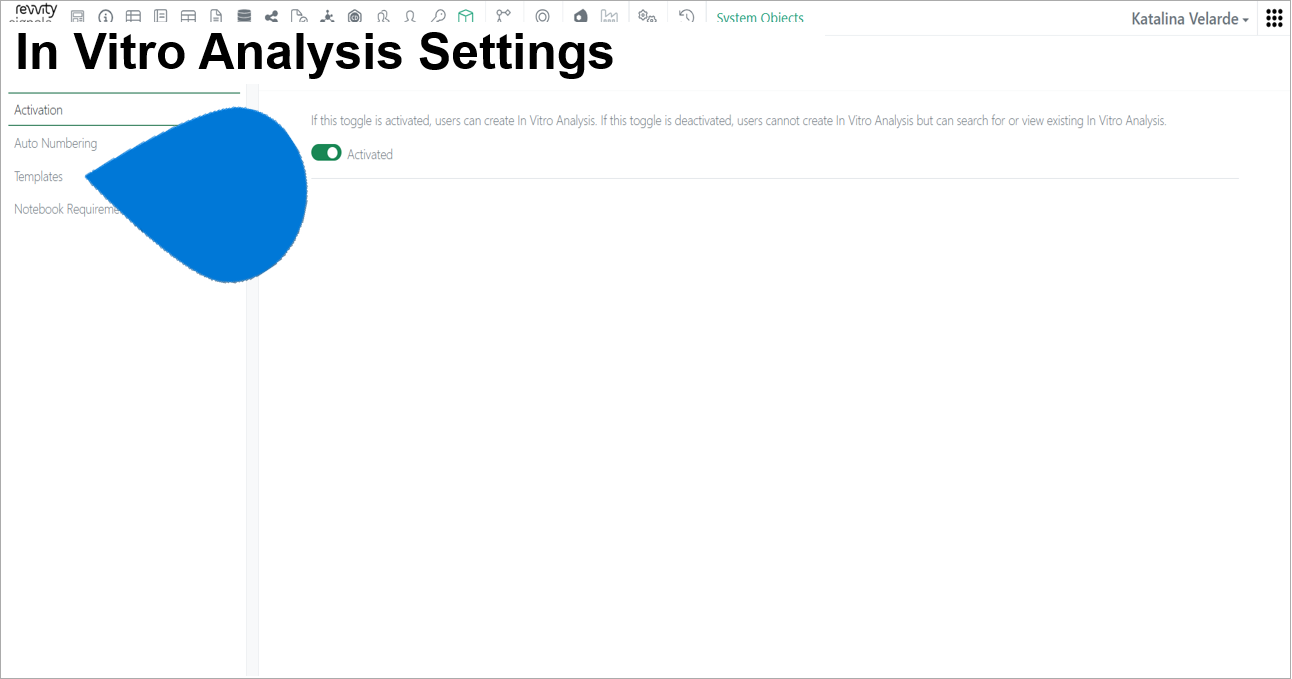

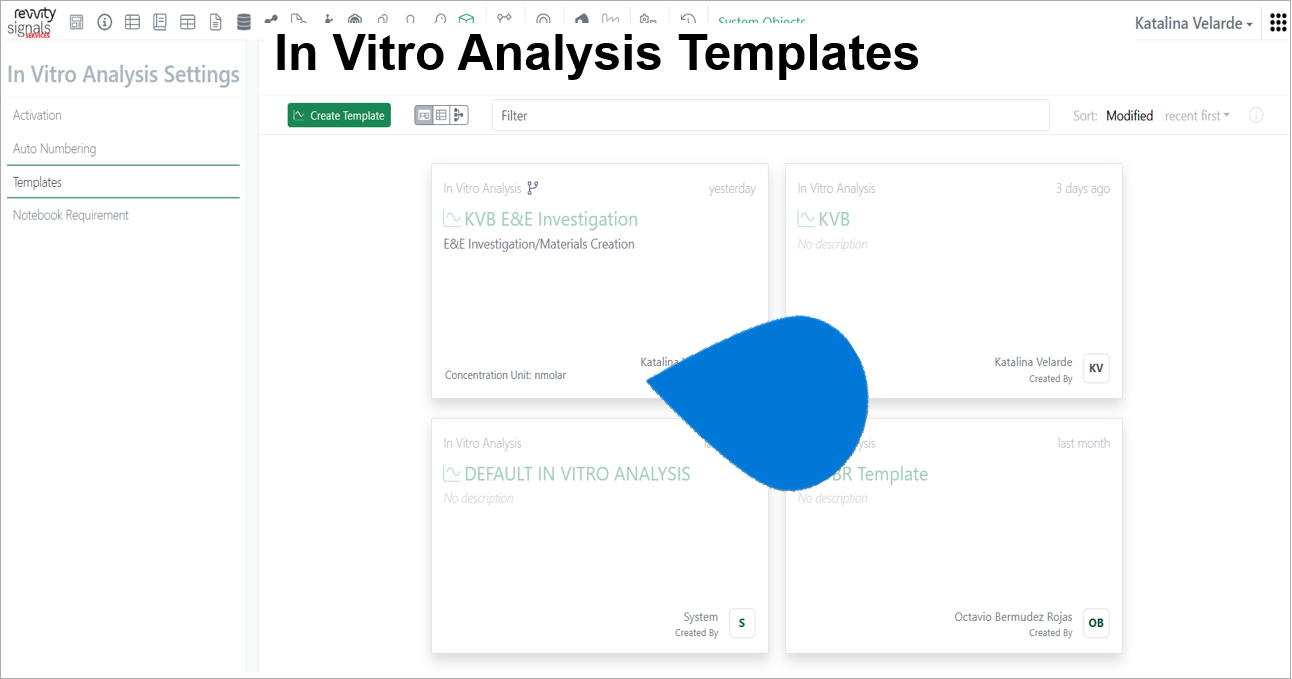

3️⃣ In Vitro Analysis Settings pane ➡ select Templates
4️⃣ In Vitro Analysis Templates section ➡ select in vitro analysis template

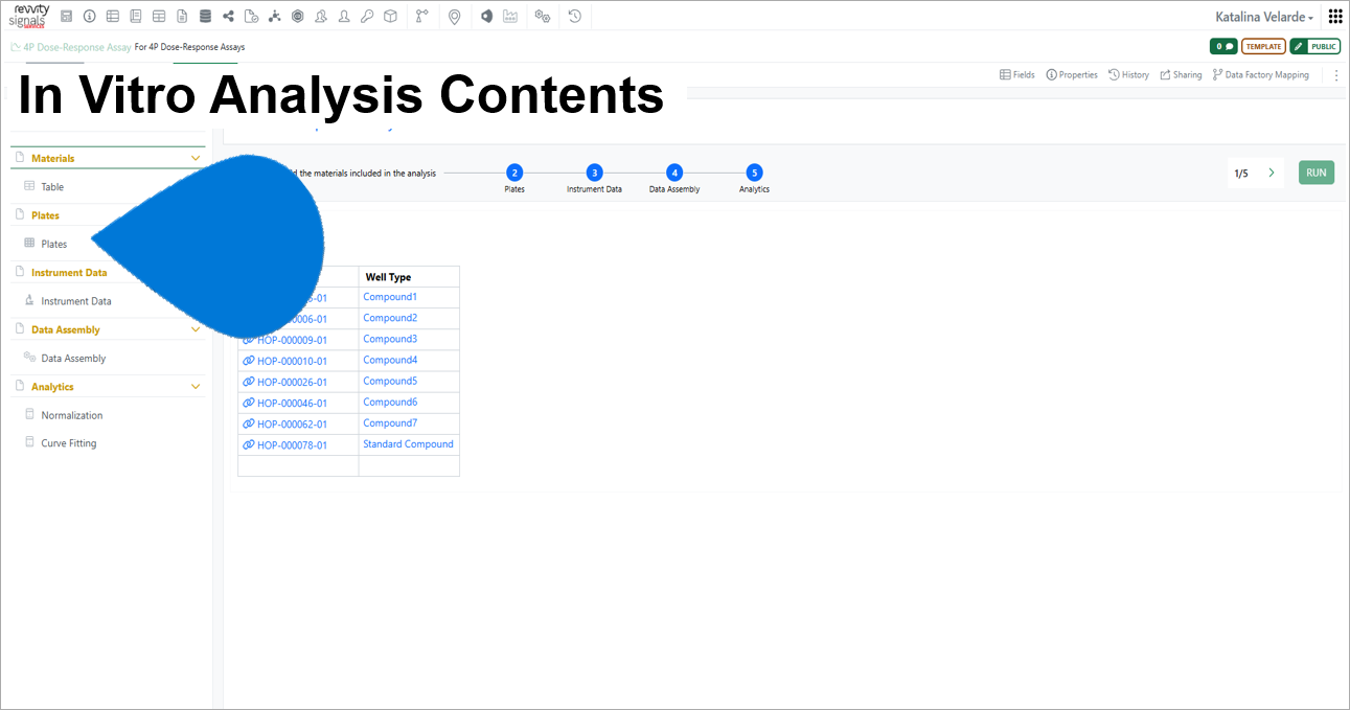

5️⃣ In Vitro Analysis Contents ➡ Plates ➡ select [Plates]

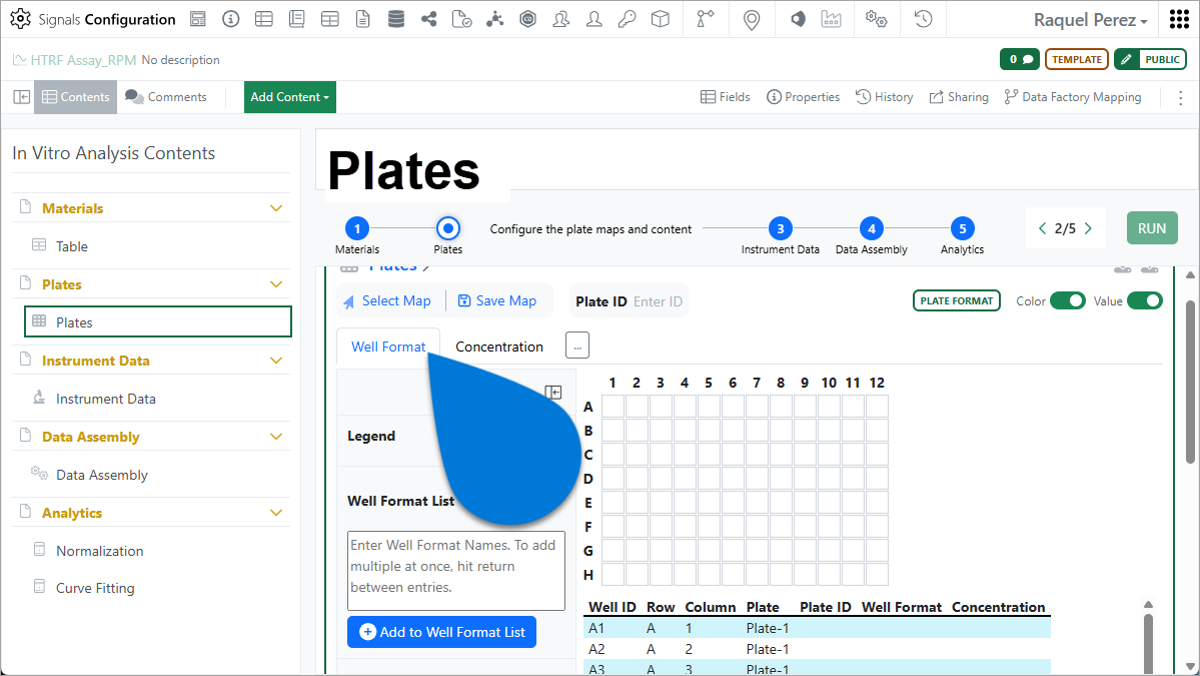

6️⃣ Plates section ➡ select Well Format

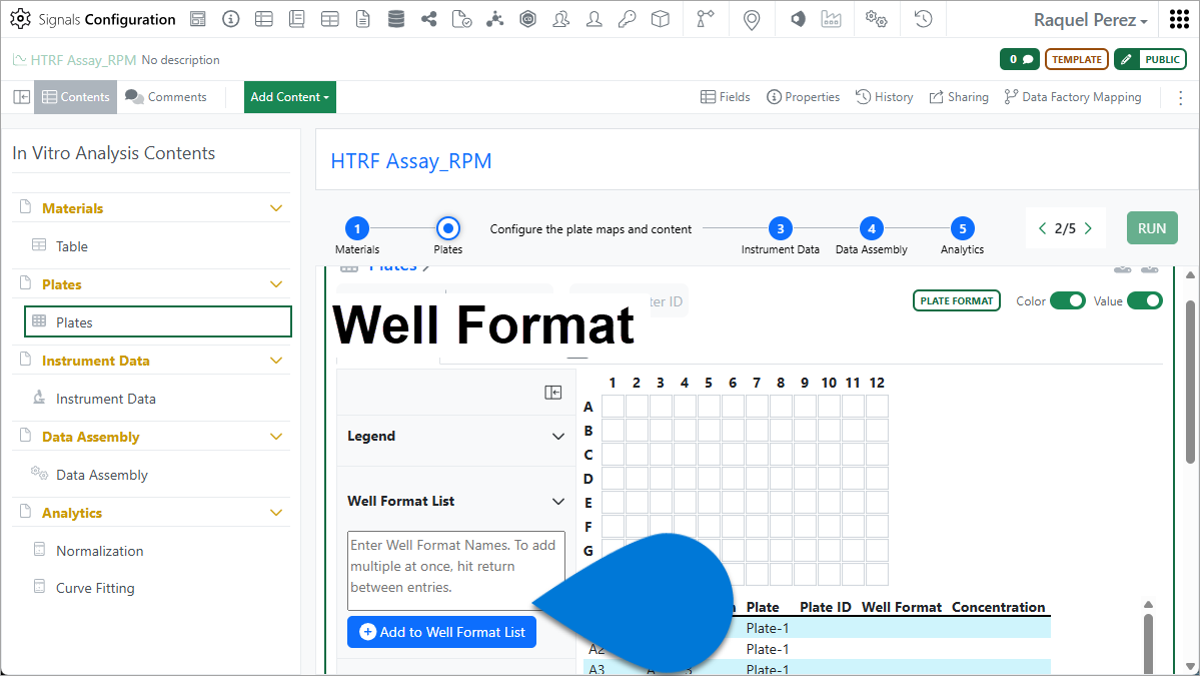

7️⃣ Well Format tab ➡ Well Format List ➡ enter well format name(s) ➡ select [Add to Well Format List]

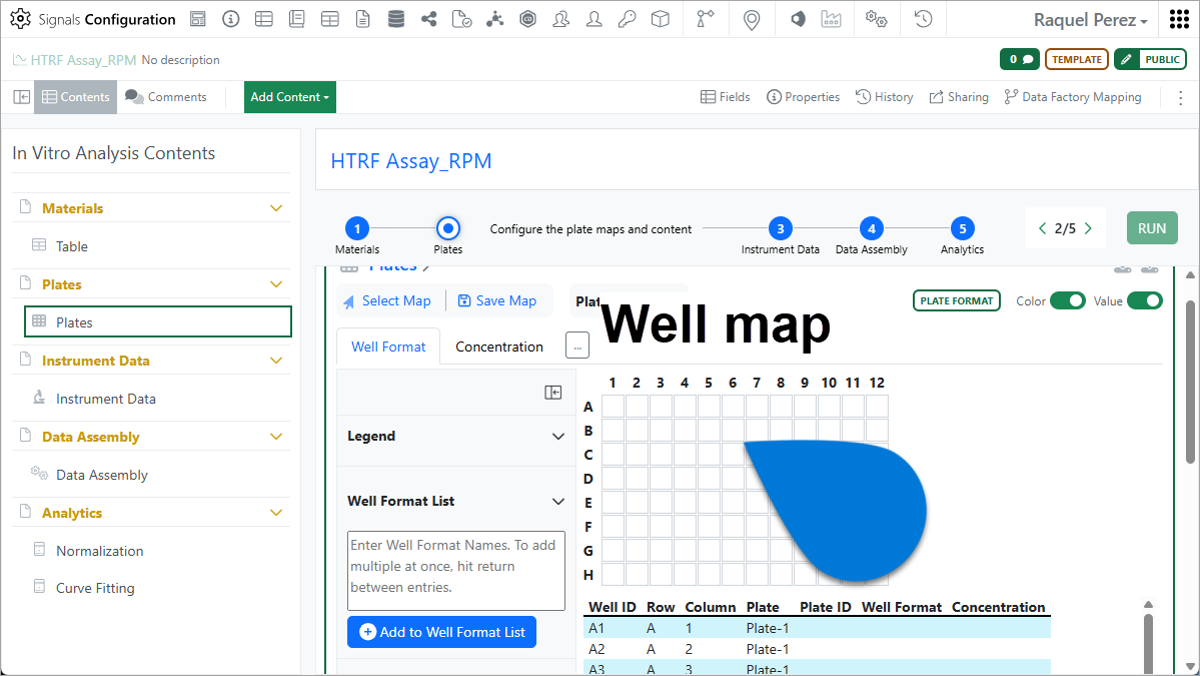

8️⃣ Well map area ➡ select via click and drag wells in a column(s)/row(s)

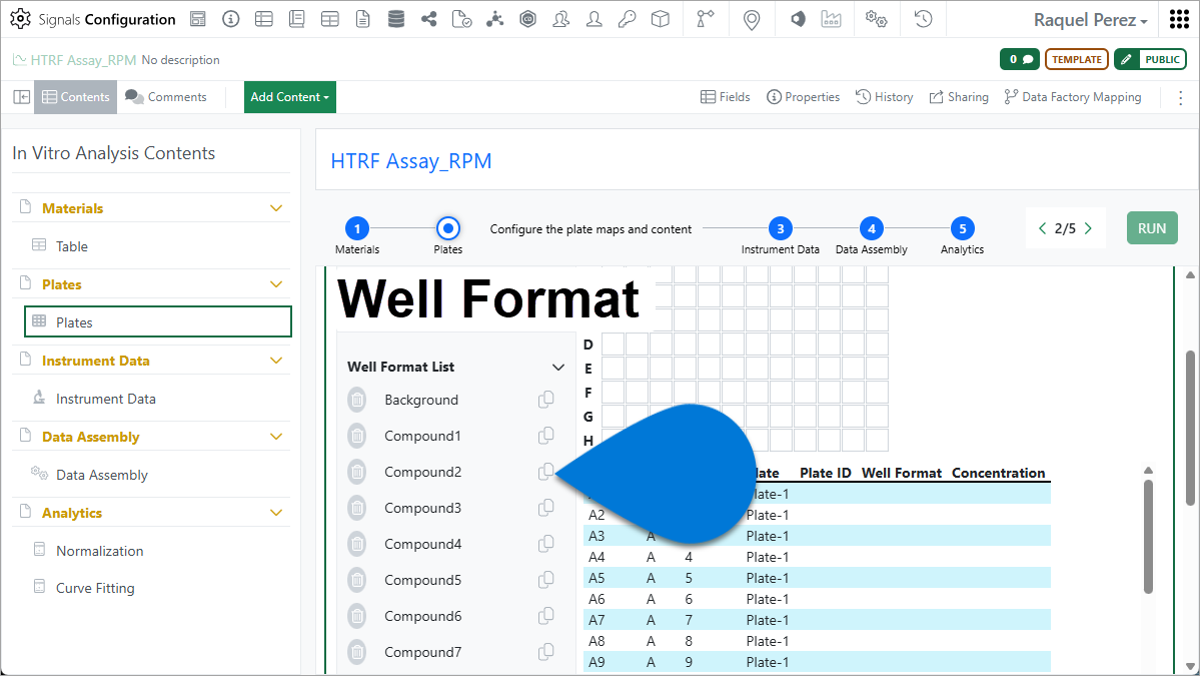

9️⃣ Well Format tab ➡ Well Format List ➡ select [Use suggestion] for a format name

Supporting Knowledge

Note: The Well Format annotation layer allows users to enter alphanumeric values, including special characters.
